1125 Models Parts Catalog
2009

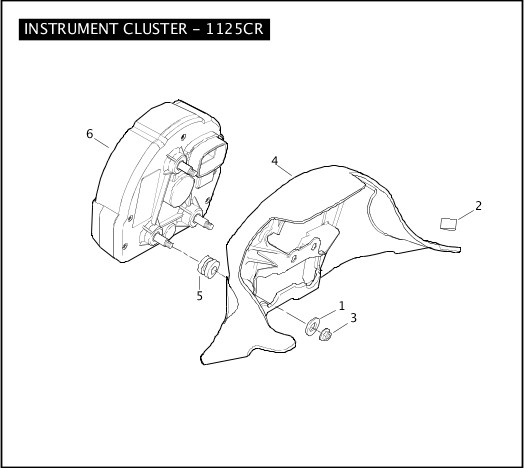

INSTRUMENT CLUSTER - 1125CR
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | B0816.2BL | WASHER (3) | 1125CR | |
| 2 | C0086.1AT | PAD, flyscreen (3) | 1125CR | Feb 2017 |
| 3 | D0500.12CCBL | NUT (3) | 1125CR | Feb 2017 |
| 4 | M0189.1ATA | COVER, dash panel | 1125CR | Feb 2017 |
| 5 | M0649.01A3 | GROMMET (3) | 1125CR | |
| Y0049.02A8 | CLIP, LH & RH control connector retainer (not illustrated) | 1125CR | ||
| 6 | Y0500.2AM | INSTRUMENT CLUSTER | 1125CR |
