1125 Models Parts Catalog
2009

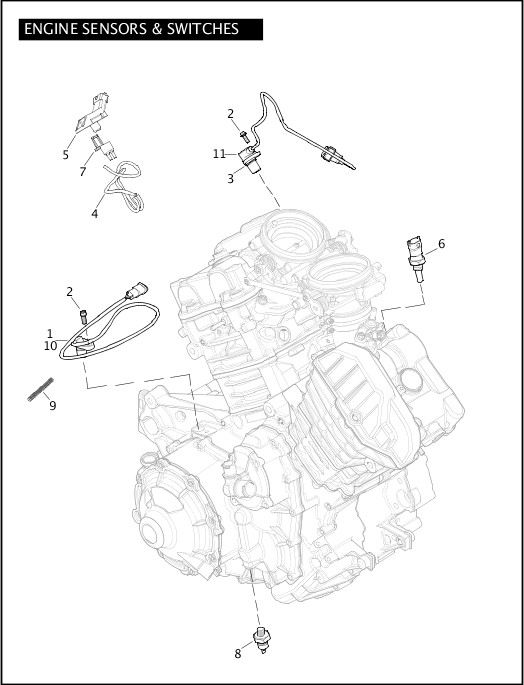

ENGINE SENSORS & SWITCHES
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 11289A | O-RING, speed sensor | 1125CR, 1125R | |
| 2 | CA0060.1AM | SCREW (2) | 1125CR, 1125R | |
| 3 | CF0018.1AM | O-RING | 1125CR, 1125R | |
| 4 | P0088.1AM | HOSE, air pressure & barometer sensor (2) | 1125CR, 1125R | |
| 5 | P0091.1AM | SENSOR, air pressure (2) | 1125CR, 1125R | |
| 6 | P0278.1AM | SENSOR, temperature | 1125CR, 1125R | |
| 7 | P0508.1AM | MANIFOLD, air pressure & barometer sensor, w/ P0088.1AM | 1125CR, 1125R | Feb 2017 |
| 8 | Y0382.1AMB | SWITCH, oil pressure | 1125CR, 1125R | Feb 2017 |
| 9 | Y0386.1AM | CONDUIT | 1125CR, 1125R | Feb 2017 |
| 10 | Y0394.1AMA | SENSOR, speed w/ 11289A | 1125CR, 1125R | Feb 2017 |
| 11 | Y0640.1AMA | SENSOR, crank position, w/ CF0018.1AM | 1125CR, 1125R | Feb 2017 |
