1125 Models Parts Catalog
2009

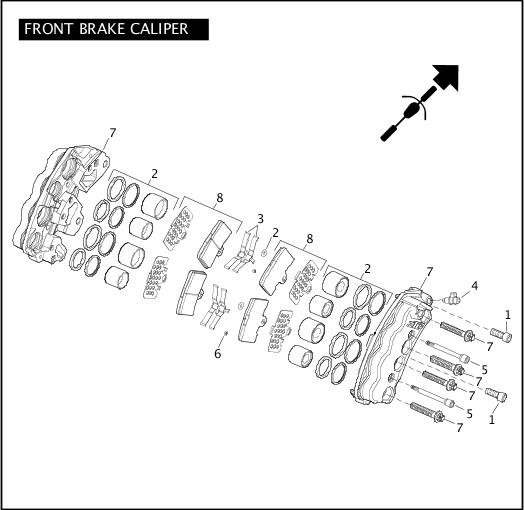

FRONT BRAKE CALIPER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0608.2CXZB | SCREW, mounting (2) | 1125CR, 1125R | |
| 2 | H0020.05AH | PISTON SET, caliper w/ H0032.02A8 | 1125CR, 1125R | |
| 3 | H0021.05AH | SPRING | 1125CR, 1125R | |
| 4 | H0022.F | BLEEDER SCREW | 1125CR, 1125R | |
| 5 | H0026.05AH | PIN, caliper w/ H0032.02A8 | 1125CR, 1125R | |
| 6 | H0032.02A8 | STOPPER | 1125CR, 1125R | |
| 7 | H0110.1AMAXT | BRAKE CALIPER ASSEMBLY, front w/ 2, 3, 4, 5, 6 & 8 (piranha black) | 1125R | |
| H0110.1AMAYDD | BRAKE CALIPER ASSEMBLY, front w/ 2, 3, 4, 5, 6 & 8 (piranha red) | 1125CR | ||
| 8 | H0300.1AMB | BRAKE PAD SET, w/ H0032.02A8 | 1125CR, 1125R |
