1125 Models Parts Catalog
2009

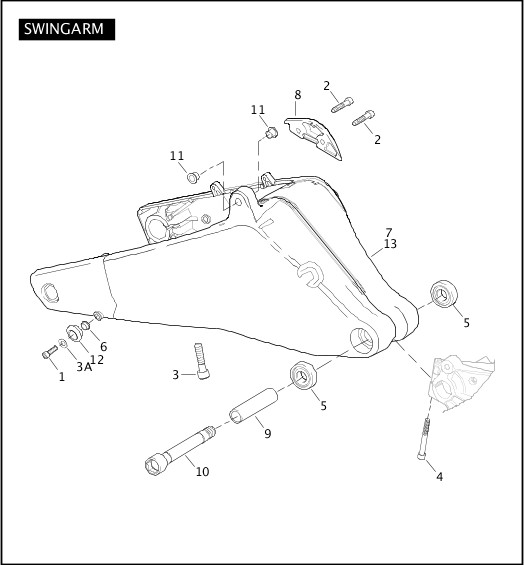

SWINGARM
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | A06020.2CVB | BOLT (2) | 1125CR, 1125R | Oct 2015 |
| 2 | A08045.2CCVB | SCREW (2) | 1125CR, 1125R | Oct 2015 |
| 3 | A12050.2CCVB | SCREW | 1125CR, 1125R | Oct 2015 |
| 3A | B0613.1BL | WASHER (2) | 1125CR, 1125R | Feb 2017 |
| 4 | CA0041.1AM | SCREW | 1125CR, 1125R | Feb 2017 |
| 5 | E0006.02A8 | BEARING (2) | 1125CR, 1125R | |
| 6 | E0040.1AT | BUSHING (2) | 1125CR, 1125R | |
| 7 | K0003.2AMYCX | SWINGARM ASSEMBLY, w/ 5, 9, 11 & label(s) (phantom metallic) | 1125R | |
| K0003.1ATYCX | SWINGARM ASSEMBLY, w/ 5, 9, 11 & label(s) (phantom metallic) | 1125CR | ||
| 8 | K0101.1AMAXT | BRACE | 1125CR, 1125R | Feb 2017 |
| 9 | K0158.1AK | SPACER | 1125CR, 1125R | |
| 10 | K0200.1AMB | SHAFT, swingarm pivot | 1125CR, 1125R | |
| 11 | K0403.02A8 | BUSHING (2) | 1125CR, 1125R | |
| 12 | M0142.1AT | SLIDER, rear axle (2) | 1125CR, 1125R | |
| 13 | K0007.2AMYCX | SWINGARM ASSEMBLY, w/ 5, 9, 11 & label(s) (AUSTRALIA) (phantom metallic) | 1125R | |
| K0007.1ATYCX | SWINGARM ASSEMBLY, w/ 5, 9, 11 & label(s) (AUSTRALIA) (phantom metallic) | 1125CR |
