1125 Models Parts Catalog
2009

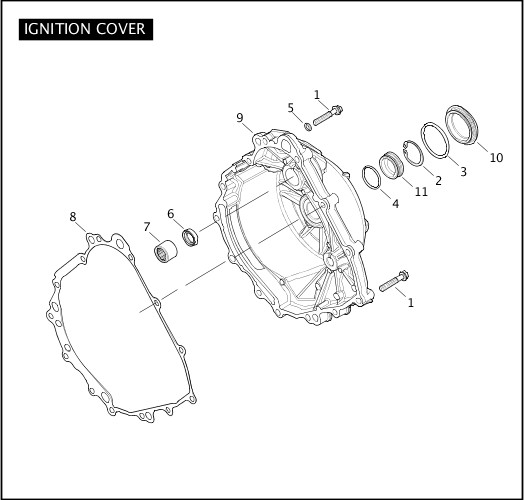

IGNITION COVER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | CA0064.1AM | SCREW (13) | 1125CR, 1125R | |
| 2 | CE0007.1AM | RETAINING RING | 1125CR, 1125R | |
| 3 | CF0010.1AM | O-RING | 1125CR, 1125R | |
| 4 | CF0011.1AM | O-RING | 1125CR, 1125R | |
| 5 | CJ0001.1AM | SEALING RING | 1125CR, 1125R | |
| 6 | CJ0002.1AM | OIL SEAL | 1125CR, 1125R | |
| 7 | E0016.1AM | NEEDLE BUSHING | 1125CR, 1125R | Feb 2017 |
| 8 | R0008.1AM | GASKET | 1125CR, 1125R | |
| 9 | R0026.1AMB | IGNITION COVER ASSEMBLY, w/ CJ0002.1AM & E0016.1AM | 1125CR, 1125R | |
| 10 | R1021.1AM | PLUG, w/ CF0010.1AM | 1125CR, 1125R | |
| 11 | U1014.1AM | SEALING SLEEVE, w/ CF0011.1AM | 1125CR, 1125R |
