1125 Models Parts Catalog
2009

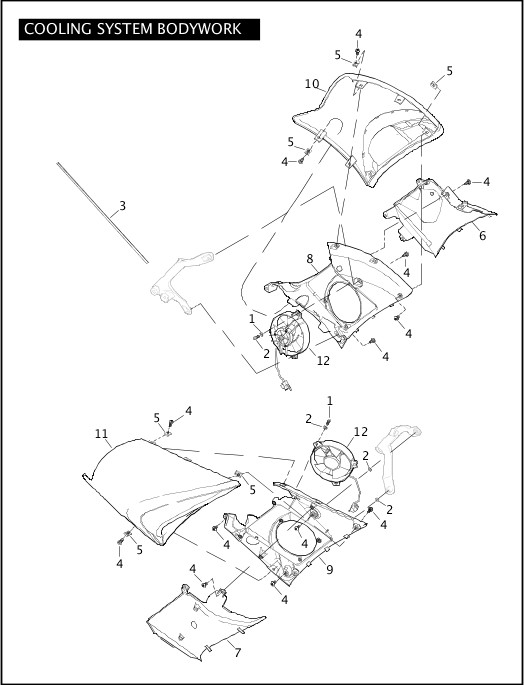

COOLING SYSTEM BODYWORK
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 73198-96 | CONNECTOR, anchor, data port, right radiator outlet duct (not illustrated) | 1125CR, 1125R | ||
| 1 | A06020.2CVB | BOLT (6) | 1125CR, 1125R | Oct 2015 |
| 2 | B0613.1BL | WASHER (8) | 1125CR, 1125R | Feb 2017 |
| 3 | C0114.1AM | FOAM (4) | 1125CR, 1125R | Feb 2017 |
| 4 | CA0030.1AMA | SCREW (22) | 1125CR, 1125R | |
| 5 | CD0022.1AM | NUT, speed (12) | 1125CR, 1125R | |
| 6 | M0038.1AM | RADIATOR INLET DUCT, left | 1125CR, 1125R | Feb 2017 |
| 7 | M0039.1AM | RADIATOR INLET DUCT, right | 1125CR, 1125R | |
| 8 | M0040.1AMD | RADIATOR OUTLET DUCT, left | 1125CR, 1125R | Feb 2017 |
| 9 | M0041.1AME | RADIATOR OUTLET DUCT, right | 1125CR, 1125R | Feb 2017 |
| 10 | M1034.1AMMAW | RADIATOR OUTER SHROUD, left (arctic white/black bezel) | 1125CR, 1125R | |
| M1034.1AMMBK | RADIATOR OUTER SHROUD, left (racing red/black bezel) | 1125CR, 1125R | ||
| M1034.1AMMW | RADIATOR OUTER SHROUD, left (midnight black) | 1125CR, 1125R | ||
| 11 | M1035.1AMMAW | RADIATOR OUTER SHROUD, right (arctic white/black bezel) | 1125CR, 1125R | |
| M1035.1AMMBK | RADIATOR OUTER SHROUD, right (racing red/black bezel) | 1125CR, 1125R | ||
| M1035.1AMMW | RADIATOR OUTER SHROUD, right (midnight black) | 1125CR, 1125R | ||
| 12 | Q0060.1AM | COOLING FAN (2) | 1125CR, 1125R | Feb 2017 |
