1125 Models Parts Catalog
2009

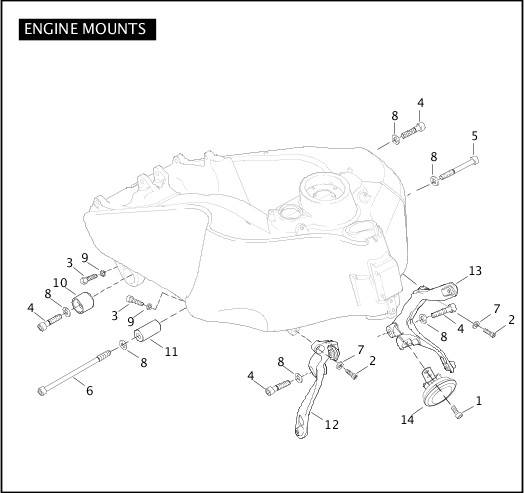

ENGINE MOUNTS
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | A08020.2CVB | SCREW | 1125CR, 1125R | Oct 2015 |
| 2 | A08030.2CVB | SCREW (2) | 1125CR, 1125R | Oct 2015 |
| 3 | A08045.2CCVB | SCREW (2) | 1125CR, 1125R | Oct 2015 |
| 4 | A10045.2CCVB | SCREW (4) | 1125CR, 1125R | Oct 2015 |
| 5 | A10085.2CCVB | SCREW | 1125CR, 1125R | Oct 2015 |
| 6 | A10180.2CCVB | SCREW | 1125CR, 1125R | Oct 2015 |
| 7 | B0816.2BL | WASHER (2) | 1125CR, 1125R | |
| 8 | B1020.2BL | WASHER (6) | 1125CR, 1125R | Feb 2017 |
| 9 | CB0002.9A7 | WASHER (2) | 1125CR, 1125R | Feb 2017 |
| 10 | L0051.1AM | PINCH SPOOL, right rear | 1125CR, 1125R | |
| 11 | L0053.1AM | PINCH SPOOL, right center | 1125CR, 1125R | |
| 12 | L0059.1AMA | K-BRACKET, right side | 1125CR, 1125R | Feb 2017 |
| 13 | L0060.1AMA | K-BRACKET, left side | 1125CR, 1125R | Feb 2017 |
| 14 | Y0308.TB | HORN | 1125CR, 1125R |
