1125 Models Parts Catalog
2009

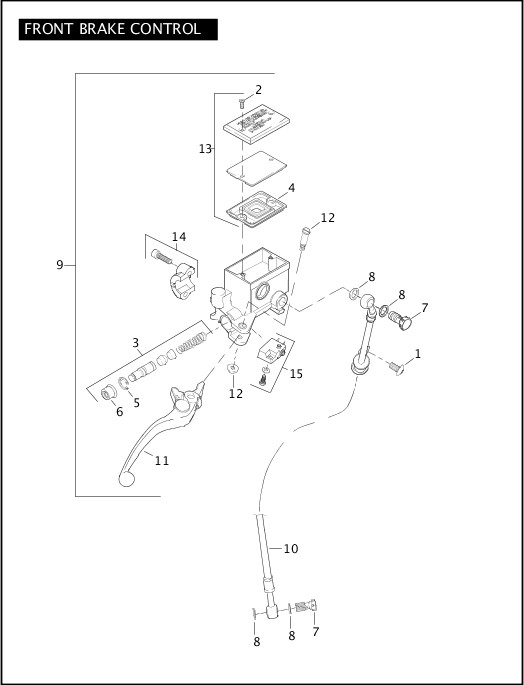

FRONT BRAKE CONTROL
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | CA0023.1AM | SCREW | 1125CR, 1125R | |
| 2 | CA0200.R | SCREW (2) | 1125CR, 1125R | |
| 3 | H0020.1AM | PISTON SET, cylinder | 1125CR, 1125R | |
| 4 | H0035.9 | COVER, diaphram | 1125CR, 1125R | |
| 5 | H0054.9 | CIRCLIP | 1125CR, 1125R | |
| 6 | H0055.9 | BOOT, piston | 1125CR, 1125R | |
| 7 | H0405.9B | BANJO BOLT (2) | 1125CR, 1125R | |
| 8 | H0412.01A0 | WASHER (4) | 1125CR, 1125R | |
| 9 | H0507.1AMC | MASTER CYLINDER, w/ 3, 11, 12, 13, 14 & 15 | 1125CR, 1125R | |
| 10 | H1531.1AMA | BRAKE LINE, front w/ H0405.9B & H0412.01A0 | 1125CR, 1125R | |
| 11 | H1508.1AM | LEVER KIT, front brake w/ N0203.9 | 1125CR, 1125R | |
| 12 | N0203.9 | PIVOT BOLT KIT | 1125CR, 1125R | |
| 13 | N0210.R | CAP SET | 1125CR, 1125R | |
| 14 | N0259.9 | CLAMP | 1125CR, 1125R | |
| 15 | Y0820.9 | SWITCH KIT, brake lever | 1125CR, 1125R |
