1125 Models Parts Catalog
2009

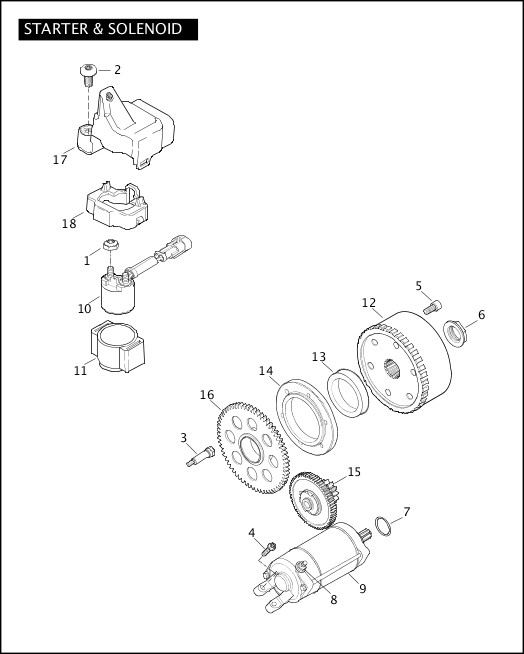

STARTER & SOLENOID
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 7495 | NUT, starter solenoid (2) | 1125CR, 1125R | |
| 2 | CA0030.1AMA | SCREW | 1125CR, 1125R | |
| 3 | CA0040.1AM | SCREW | 1125CR, 1125R | Jan 2017 |
| 4 | CA0062.1AM | SCREW (2) | 1125CR, 1125R | |
| 5 | CA0081.1AM | SCREW (6) | 1125CR, 1125R | Feb 2017 |
| 6 | CD0032.1AM | NUT | 1125CR, 1125R | |
| 7 | CF0016.1AM | O-RING | 1125CR, 1125R | |
| 8 | D0600.10CCBL | NUT, starter | 1125CR, 1125R | Feb 2017 |
| 9 | Y0383.1AM | STARTER | 1125CR, 1125R | |
| 10 | Y0395.1AM | STARTER SOLENOID, w/ Y0453.1AM | 1125CR, 1125R | Feb 2017 |
| Y0439.1AMA | CABLE, starter to starter solenoid (not illustrated) | 1125CR, 1125R | ||
| 11 | Y0453.1AM | BOOT, starter solenoid | 1125CR, 1125R | |
| 12 | Y0533.2AM | FLYWHEEL, w/ hub | 1125CR, 1125R | Feb 2017 |
| 13 | Y0536.1AM | CLUTCH, sprag | 1125CR, 1125R | |
| 14 | Y0537.1AM | HOUSING, sprag clutch | 1125CR, 1125R | |
| 15 | Y0538.1AMA | CLUTCH, friction | 1125CR, 1125R | Feb 2017 |
| 16 | Y0539.1AM | GEAR, 53T | 1125CR, 1125R | |
| 17 | Y1011.1AMA | TOP, starter solenoid / brake reservoir mount | 1125CR, 1125R | Feb 2017 |
| 18 | Y1014.1AM | BOTTOM, starter solenoid | 1125CR, 1125R | Feb 2017 |
