1125 Models Parts Catalog
2009

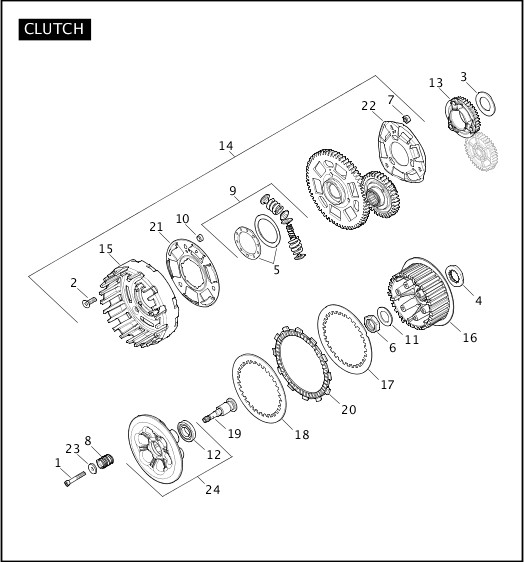

CLUTCH
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | CA0080.1AM | SCREW (6) | 1125CR, 1125R | |
| 2 | CA0083.1AM | SCREW (3) | 1125CR, 1125R | |
| 3 | CB0024.1AM | THRUST WASHER | 1125CR, 1125R | |
| 4 | CB0026.1AM | THRUST RING | 1125CR, 1125R | |
| 5 | CB2501.1AM | KIT, primary drive washers | 1125CR, 1125R | |
| 6 | CD0034.1AM | NUT | 1125CR, 1125R | |
| 7 | CD0035.1AMA | NUT (3) | 1125CR, 1125R | |
| 8 | CG0007.1AMB | CLUTCH SPRING (6) | 1125CR, 1125R | |
| 9 | CG2501.1AM | KIT, primary drive springs & washers | 1125CR, 1125R | |
| 10 | CH0006.1AM | SLEEVE (3) | 1125CR, 1125R | |
| 11 | CK0002.1AM | SPRING WASHER | 1125CR, 1125R | |
| 12 | E0017.1AM | BALL BEARING | 1125CR, 1125R | |
| 13 | Q0053.1AMA | GEAR, oil pump, 38T | 1125CR, 1125R | Feb 2017 |
| 14 | X0011.1AMB | PRIMARY DRIVE ASSEMBLY, w/ 2, 7, 9, 10, 15, 21 & 22 | 1125CR, 1125R | |
| 15 | X0012.1AMA | CLUTCH DRUM | 1125CR, 1125R | Jan 2017 |
| 16 | X0013.1AM | CLUTCH HUB | 1125CR, 1125R | |
| 17 | X0014.1AM | CLUTCH PLATE | 1125CR, 1125R | |
| 18 | X0015.1AMA | CLUTCH PLATE (9) | 1125CR, 1125R | |
| 19 | X0019.1AMB | CLUTCH RELEASE PIN | 1125CR, 1125R | Feb 2017 |
| 20 | X0030.1AM | FRICTION PLATE (9) | 1125CR, 1125R | |
| 21 | X0100.1AMA | SUPPORT PLATE, inner side | 1125CR, 1125R | Feb 2017 |
| 22 | X0101.1AMA | SUPPORT PLATE, outer side | 1125CR, 1125R | Feb 2017 |
| 23 | X0104.1AM | STEP WASHER (6) | 1125CR, 1125R | |
| 24 | X1035.1AMA | PRESSURE PLATE ASSEMBLY, w/ E0017.1AM | 1125CR, 1125R |
