1125 Models Parts Catalog
2009

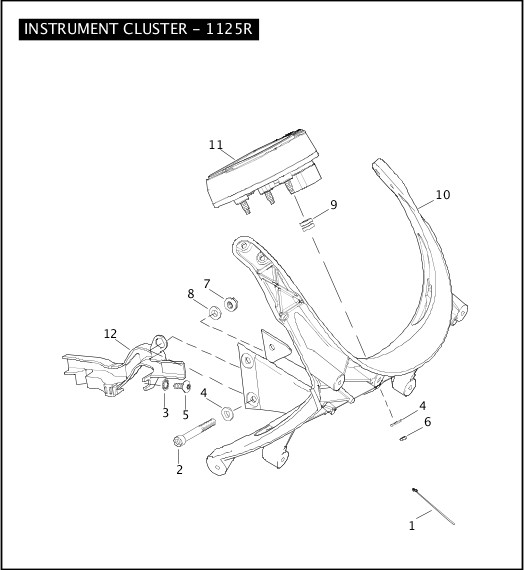

INSTRUMENT CLUSTER - 1125R
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 10177 | CABLE STRAP | 1125R | |
| 2 | A08070.2CVB | SCREW (2) | 1125R | Oct 2015 |
| 3 | B0814.4BL | WASHER | 1125R | |
| 4 | B0816.2BL | WASHER (6) | 1125R | |
| 5 | CA0030.1AMA | SCREW | 1125R | |
| 6 | D0500.12CCBL | NUT (3) | 1125R | Feb 2017 |
| 7 | D0800.12CCBL | NUT (2) | 1125R | Feb 2017 |
| 8 | E0036.1AM | BUSHING | 1125R | Feb 2017 |
| 9 | M0649.01A3 | GROMMET (3) | 1125R | |
| 10 | L0940.1AMBYCP | BRACKET, fairing support | 1125R | |
| 11 | Y0500.2AM | INSTRUMENT CLUSTER | 1125R | |
| 12 | Y1000.1AM | BRACKET, front wire harness | 1125R | Feb 2017 |
