1125 Models Parts Catalog
2009

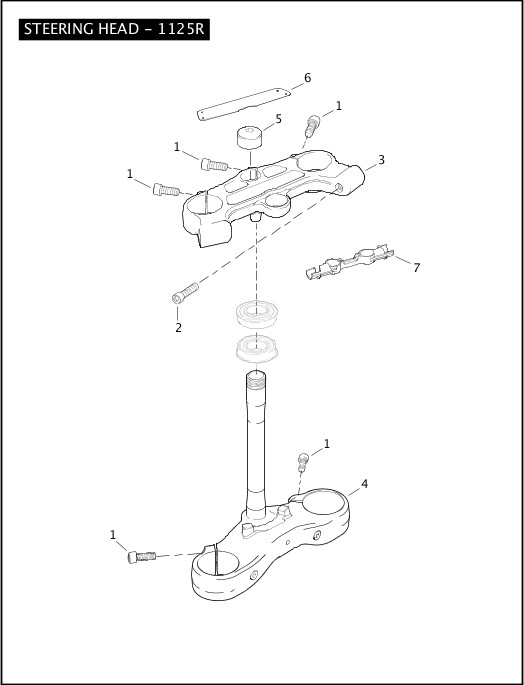

STEERING HEAD - 1125R
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | A08030.2CVB | SCREW (7) | 1125R | Oct 2015 |
| 2 | AA0508.2CXZB | SCREW (2) | 1125R | |
| 3 | J0105.1AMBYCP | TRIPLE CLAMP, upper | 1125R | Feb 2017 |
| 4 | J0106.1ATXT | TRIPLE CLAMP, lower | 1125R | |
| 5 | J0135.02A8A | NUT | 1125R | |
| 6 | M0689.2AM | GRAPHIC, upper triple clamp | 1125R | |
| 7 | Y1019.1AM | WIRE GUIDE, upper triple clamp | 1125R | Feb 2017 |
