1125 Models Parts Catalog
2009

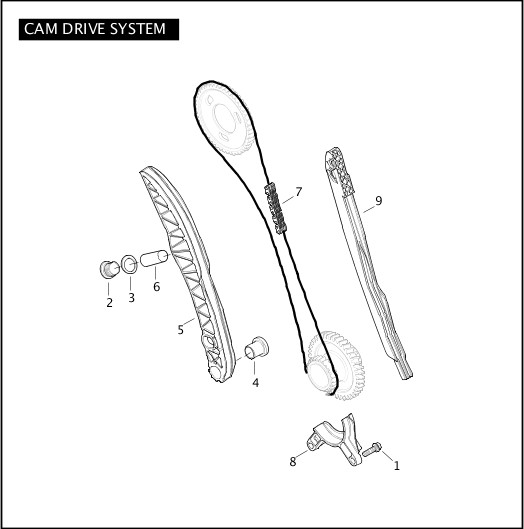

CAM DRIVE SYSTEM
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | CA0061.1AM | SCREW (4) | 1125CR, 1125R | |
| 2 | CA2501.1AM | PLUG, w/ CJ0003.1AM (2) | 1125CR, 1125R | |
| 3 | CJ0003.1AM | SEALING RING (2) | 1125CR, 1125R | |
| 4 | E0029.1AM | SLEEVE (2) | 1125CR, 1125R | Feb 2017 |
| 5 | F0020.1AM | GUIDE, chain tension (2) | 1125CR, 1125R | Feb 2017 |
| 6 | F0021.1AMA | CHAIN TENSIONER ASSEMBLY (2) | 1125CR, 1125R | |
| 7 | F0055.1AM | CHAIN, camshaft (2) | 1125CR, 1125R | Jan 2017 |
| 8 | F0058.1AMA | GUIDE, chain (2) | 1125CR, 1125R | |
| 9 | F0059.1AM | GUIDE, chain (2) | 1125CR, 1125R | Feb 2017 |
