1125 Models Parts Catalog
2009

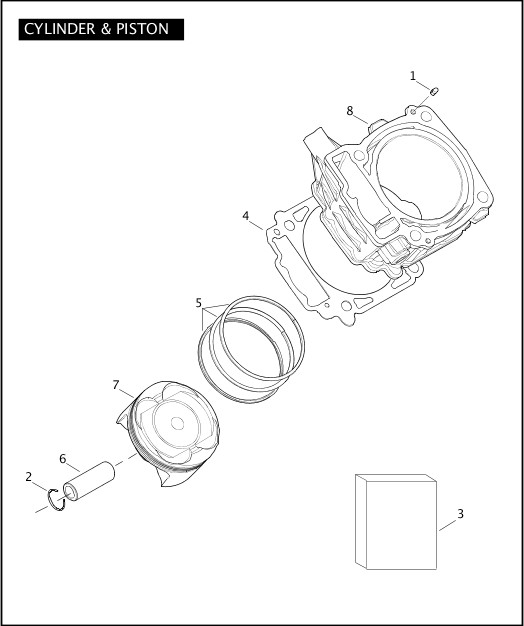

CYLINDER & PISTON
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | CC0002.1AM | DRIVE PIN (4) | 1125CR, 1125R | |
| 2 | CE0005.1AM | CIRCLIP (4) | 1125CR, 1125R | |
| 3 | T1001.1AM | GASKET KIT, engine overhaul (does not include exhaust gaskets) | 1125CR, 1125R | |
| 4 | V0025.1AM | GASKET (2) | 1125CR, 1125R | |
| 5 | V0050.1AMA | PISTON RING SET (2) | 1125CR, 1125R | Feb 2017 |
| 6 | V0061.1AMA | PIN, piston (2) | 1125CR, 1125R | Feb 2017 |
| 7 | V0200.1AMB | PISTON, w/ V0050.1AMA (2) | 1125CR, 1125R | Feb 2017 |
| 8 | V1040.1AM | CYLINDER, front, w/ CC0002.1AM | 1125CR, 1125R | |
| V1041.1AM | CYLINDER, rear, w/ CC0002.1AM | 1125CR, 1125R |
