1125 Models Parts Catalog
2009

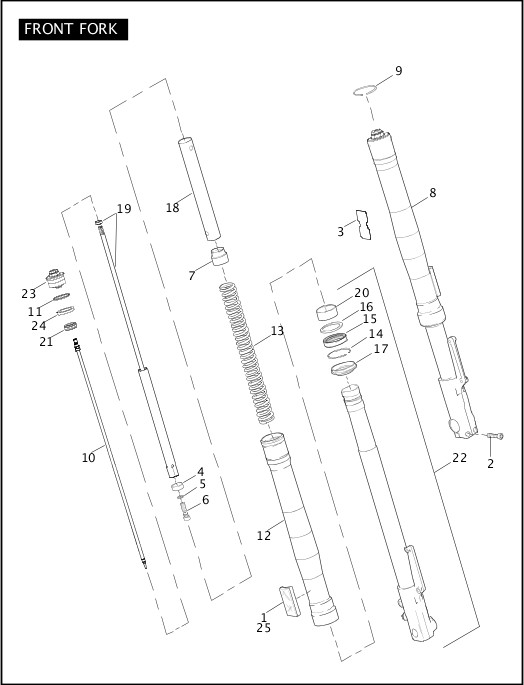

FRONT FORK
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 59256-84A | REFLECTOR, amber (2) | 1125CR, 1125R | |
| 2 | A08035.2CVB | SCREW, axle (4) | 1125CR, 1125R | |
| 3 | C0440.1AT | TAPE, right fork (2) | 1125CR, 1125R | |
| 4 | J0114.02A8 | CENTERING PLATE (2) | 1125CR, 1125R | |
| 5 | J0115.02A8 | WASHER, fork (2) | 1125CR, 1125R | |
| 6 | J0116.02A8 | BOLT, center (2) | 1125CR, 1125R | |
| 7 | J8117.3AK | SPRING JOINT, fork (2) | 1125CR, 1125R | |
| 8 | J0121.1AMB | FRONT FORK ASSEMBLY, left w/ 4, 5, 6, 7, 10, 12, 13, 18, 19, 21, 22, 23 & 24 | 1125R | Feb 2017 |
| J0121.1AT | FRONT FORK ASSEMBLY, left w/ 4, 5, 6, 7, 10, 12, 13, 18, 19, 21, 22, 23 & 24 | 1125CR | Feb 2017 |
|
| J0122.1AMB | FRONT FORK ASSEMBLY, right w/ 4, 5, 6, 7, 10, 12, 13, 18, 19, 21, 22, 23 & 24 | 1125R | ||
| J0122.1AT | FRONT FORK ASSEMBLY, right w/ 4, 5, 6, 7, 10, 12, 13, 18, 19, 21, 22, 23 & 24 | 1125CR | ||
| 9 | J0124.02A8 | STOPPER RING (2) | 1125CR, 1125R | Feb 2017 |
| 10 | J8103.1AMA | PUSH ROD, fork (2) | 1125CR, 1125R | |
| 11 | J8104.3AK | O-RING, fork (2) | 1125CR, 1125R | |
| 12 | J8107.1AMA | OUTER TUBE (2) | 1125R | |
| J8107.1AT | OUTER TUBE (2) | 1125CR | ||
| 13 | J8113.1AMB | SPRING, fork (2) | 1125CR, 1125R | |
| 14 | J8126.3AK | OIL SEAL STOPPER RING (2) | 1125CR, 1125R | |
| 15 | J8127.3AK | OIL SEAL (2) | 1125CR, 1125R | |
| 16 | J8128.3AK | SEAL SPACER (2) | 1125CR, 1125R | |
| 17 | J8130.3AK | DUST SEAL (2) | 1125CR, 1125R | |
| 18 | J8135.02A8 | SPRING COLLAR, fork (2) | 1125CR, 1125R | |
| 19 | J8139.1AMB | DAMPER ASSEMBLY, includes rebound adjuster assembly, damper locknut, damper assembly (2) | 1125CR, 1125R | |
| 20 | J8140.3AK | GUIDE BUSHING (2) | 1125CR, 1125R | |
| 21 | J8141.02A8 | SLIDER PISTON (2) | 1125CR, 1125R | |
| 22 | J8142.1AMA | SLIDER COMPONENT, left fork w/ 14, 15, 16, 17 & 20 | 1125R | |
| J8142.1AT | SLIDER COMPONENT, left fork w/ 14, 15, 16, 17 & 20 | 1125CR | ||
| J8143.1AMA | SLIDER COMPONENT, right fork w/ 14, 15, 16, 17 & 20 | 1125R | ||
| J8143.1AT | SLIDER COMPONENT, right fork w/ 14, 15, 16, 17 & 20 | 1125CR | ||
| 23 | J8144.1AMA | PRELOAD ADJUSTMENT ASSEMBLY, w/ J8104.3AK | 1125R | |
| J8144.1AT | PRELOAD ADJUSTMENT ASSEMBLY, w/ J8104.3AK | 1125CR | ||
| 24 | J8146.3AK | SEAT, rubber (2) | 1125CR, 1125R | |
| 25 | M0106.02A8A | REFLECTOR ASSEMBLY, amber (2) | 1125CR, 1125R |
