1125 Models Parts Catalog
2009

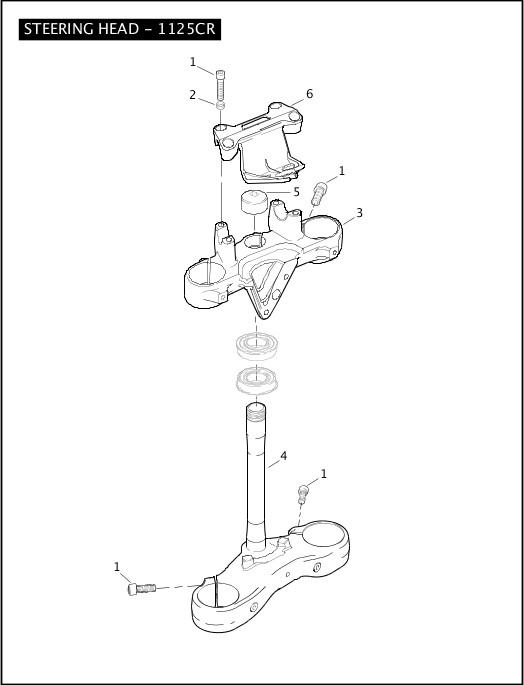

STEERING HEAD - 1125CR
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | A08030.2CVB | SCREW (11) | 1125CR | Oct 2015 |
| 2 | CB0002.9A7 | WASHER (4) | 1125CR | Feb 2017 |
| 3 | J0105.1ATYCX | TRIPLE CLAMP, upper | 1125CR | Feb 2017 |
| 4 | J0106.1ATXT | TRIPLE CLAMP, lower | 1125CR | |
| 5 | J0135.02A8A | NUT | 1125CR | |
| 6 | N0348.1ATYCX | HANDLEBAR CLAMP | 1125CR | Feb 2017 |
