1125 Models Parts Catalog
2009

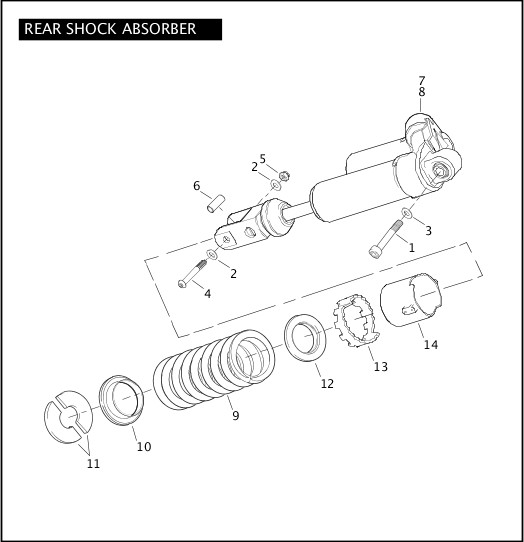

REAR SHOCK ABSORBER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | A10085.2CCVB | SCREW | 1125CR, 1125R | Oct 2015 |
| 2 | BA0511.2Z | WASHER (2) | 1125CR, 1125R | |
| 3 | B1020.2BL | WASHER | 1125CR, 1125R | Feb 2017 |
| 4 | CA0020.02A8 | BOLT | 1125CR, 1125R | Feb 2017 |
| 5 | DA0500.10CZ | LOCKNUT | 1125CR, 1125R | |
| 6 | K0402.02A8A | SLEEVE, rear shock mount | 1125CR, 1125R | Feb 2017 |
| 7 | K0410.1AMB | REAR SHOCK, w/ 8, 9, 10, 11, 12, 13, 14 | 1125CR, 1125R | Feb 2017 |
| 8 | K0423.1AMB | SHOCK BODY, w/ reservoir | 1125CR, 1125R | |
| 9 | K0424.1AMA | SPRING | 1125CR, 1125R | |
| 10 | K0426.02A8 | SPRING SEAT | 1125CR, 1125R | |
| 11 | K0427.02A8 | SPRING SEAT STOPPER | 1125CR, 1125R | |
| 12 | K0428.1AMA | SPRING SEAT | 1125CR, 1125R | |
| 13 | K0440.1AMA | SPRING ADJUSTER | 1125CR, 1125R | |
| 14 | K0441.1AMA | PIPE GUIDE | 1125CR, 1125R |
