1125 Models Parts Catalog
2009

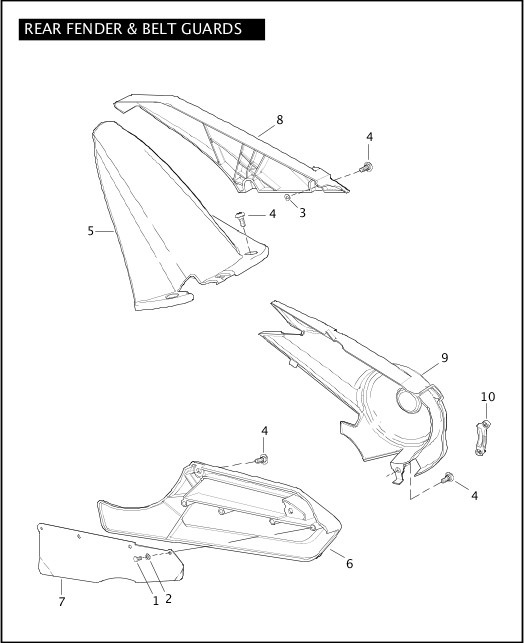

REAR FENDER & BELT GUARDS
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | A04010.24CXVB | SCREW (4) | 1125CR, 1125R | Oct 2015 |
| 2 | B0409.1BL | WASHER (4) | 1125CR, 1125R | Feb 2017 |
| 3 | B0613.1BL | WASHER | 1125CR, 1125R | Feb 2017 |
| 4 | CA0030.1AMA | SCREW (8) | 1125CR, 1125R | |
| 5 | M0550.1AM | FENDER, rear inner | 1125CR, 1125R | Feb 2017 |
| 6 | M0560.1AMA | BELT GUARD, lower | 1125CR, 1125R | Feb 2017 |
| 7 | M0561.1AMA | STONE GUARD | 1125CR, 1125R | |
| 8 | M0570.1AMA | BELT GUARD, upper | 1125CR, 1125R | Feb 2017 |
| 9 | M0580.1AMA | ENGINE SPROCKET COVER | 1125CR, 1125R | Feb 2017 |
| 10 | Y1010.1AM | WIRE GUARD, front sprocket cover | 1125CR, 1125R | Feb 2017 |
