1125 Models Parts Catalog
2009

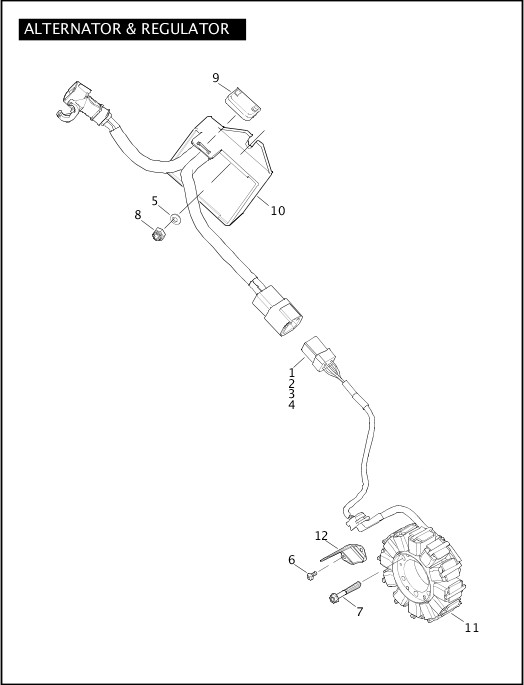

ALTERNATOR & REGULATOR
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 72195-94 | SEAL PIN | 1125CR, 1125R | |
| 2 | 72604-01BK | HOUSING PIN | 1125CR, 1125R | |
| 3 | 72644-01 | SECONDARY LOCK | 1125CR, 1125R | |
| 4 | 72690-01 | TERMINAL PIN (3) | 1125CR, 1125R | |
| 5 | B0613.1BL | WASHER (2) | 1125CR, 1125R | Feb 2017 |
| 6 | CA0048.1AM | SCREW (2) | 1125CR, 1125R | |
| 7 | CA0063.1AM | SCREW (3) | 1125CR, 1125R | |
| 8 | D0600.10CCBL | NUT (2) | 1125CR, 1125R | Feb 2017 |
| 9 | M0113.1AM | CAP, voltage regulator | 1125CR, 1125R | Feb 2017 |
| 10 | Y0302.1AMC | VOLTAGE REGULATOR | 1125CR, 1125R | |
| 11 | Y0442.2AM | STATOR ASSEMBLY | 1125CR, 1125R | |
| 12 | Y1012.1AM | CABLE HOLDER, inner | 1125CR, 1125R |
