1125 Models Parts Catalog
2009

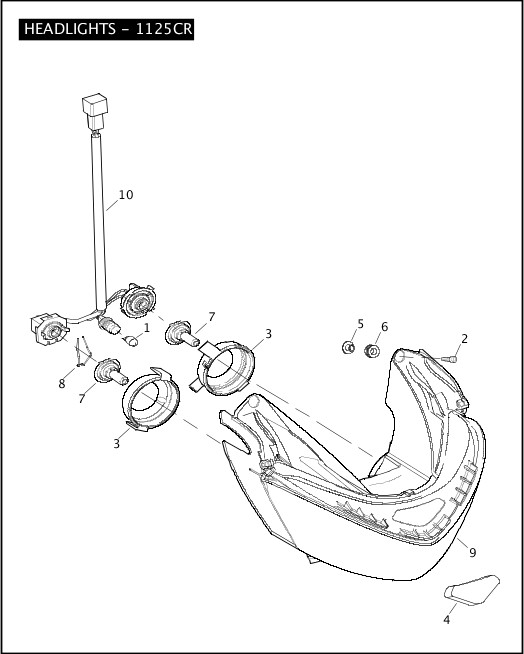

HEADLIGHTS - 1125CR
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 53436-97 | LAMP, headlight position, 5W | 1125CR | |
| 2 | A08020.2CVB | SCREW (2) | 1125CR | Oct 2015 |
| 3 | C0051.1AD | RUBBER BOOT (2) | 1125CR | |
| 4 | C0088.1AT | FOAM INTERFACE, headlight/flyscreen | 1125CR | |
| 5 | CH0018.1AM | INSERT, grommet (2) | 1125CR | |
| CP0003.1AT | GROMMET (not illustrated) (2) | 1125CR | ||
| 6 | CP0005.1AM | GROMMET (2) | 1125CR | |
| 7 | Y0148.1AD | BULB, 55W (2) | 1125CR | |
| 8 | Y0149.1AD | BULB HOLDER | 1125CR | |
| 9 | Y0721.1ATA | HEADLAMP ASSEMBLY, left & right w/ 1, 3, 4, 5, 6, 7, 8 & 10 | 1125CR | |
| 10 | Y1145.1AT | SUBHARNESS | 1125CR |
