1125 Models Parts Catalog
2009

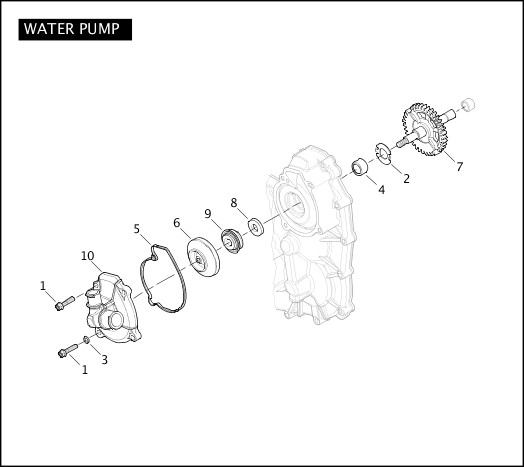

WATER PUMP
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | CA0062.1AM | SCREW (4) | 1125CR, 1125R | |
| 2 | CB0050.1AMA | THRUST WASHER | 1125CR, 1125R | Feb 2017 |
| 3 | CJ0001.1AM | SEALING RING | 1125CR, 1125R | |
| 4 | E0015.1AM | NEEDLE BUSHING | 1125CR, 1125R | Feb 2017 |
| 5 | Q0426.1AM | GASKET | 1125CR, 1125R | |
| 6 | Q0427.1AM | IMPELLER | 1125CR, 1125R | |
| 7 | Q0428.1AM | SHAFT ASSEMBLY, water pump | 1125CR, 1125R | Feb 2017 |
| 8 | Q0430.1AM | OIL SEAL | 1125CR, 1125R | |
| 9 | Q0431.1AMA | ROTARY SEAL | 1125CR, 1125R | |
| 10 | Q1425.1AM | WATERPUMP HOUSING, w/ Q0426.1AM | 1125CR, 1125R |
