1125 Models Parts Catalog
2009

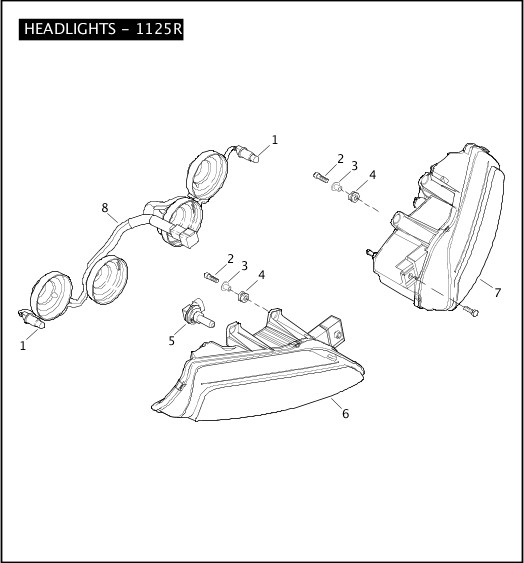

HEADLIGHTS - 1125R
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 53436-97 | LAMP, headlight position, 5W (2) | 1125R | |
| 2 | A08020.2CVB | SCREW | 1125R | Oct 2015 |
| 3 | CH0018.1AM | INSERT, grommet (6) | 1125R | |
| 4 | CP0005.1AM | GROMMET (6) | 1125R | |
| 5 | Y0025.1AM | BULB, 35W (4) | 1125R | |
| 6 | Y0721.1AM | HEADLAMP ASSEMBLY, right | 1125R | |
| 7 | Y0722.1AM | HEADLAMP ASSEMBLY, left | 1125R | |
| 8 | Y1145.1AMA | SUBHARNESS | 1125R | Mar 2017 |
| Y1721.1AM | HEADLAMP ASSEMBLY, left & right w/ 1, 3, 4, 5, 6, 7 & 8 | 1125R |
