1125 Models Parts Catalog

2009
  1. Home
  2. Part
  3. Catalogs

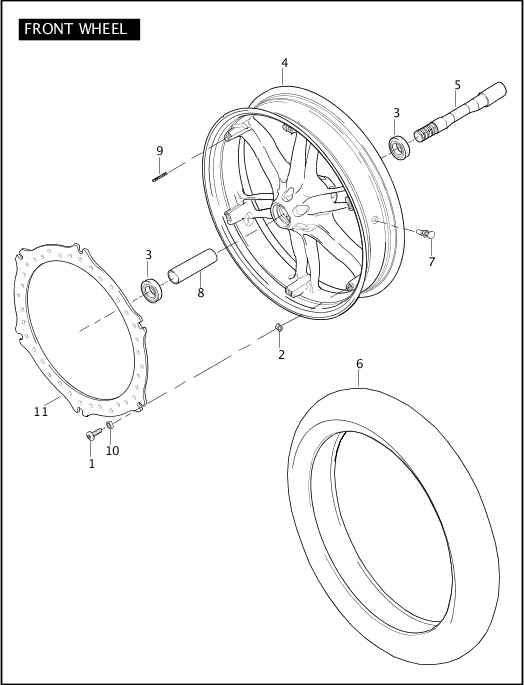

FRONT WHEEL

Part Image Missing
Index No. Part No. Description Models Obselete
1 CA0014.02A8 BOLT, front rotor (6) 1125CR, 1125R
2 CB0006.02A8 WASHER, drive bushing (6) 1125CR, 1125R
3 E0004.02A8B BEARING (2) 1125CR, 1125R
4 G0110.02A8AYBX WHEEL ASSEMBLY, front (hero blue), w/o bearings & sleeve 1125R
G0110.02A8AYCX WHEEL ASSEMBLY, front (piranha black), w/o bearings & sleeve 1125R
G0110.02A8AYDC WHEEL ASSEMBLY, front (piranha black w/ red pinstripe), w/o bearings & sleeve 1125CR
5 G0120.02A8B AXLE, front 1125CR, 1125R
6 G0150.1AMB TIRE, front 1125CR, 1125R
Jan 2013
7 G0313.02A8 VALVE STEM ASSEMBLY, w/ cap 1125CR, 1125R
8 G0325.02A8 AXLE SPACER, front 1125CR, 1125R
9 H0505.02A8 SPRING, front rotor (6) 1125CR, 1125R
10 H0506.02A8B DRIVE BUSHING, front rotor mount (6) 1125CR, 1125R
11 H1201.02A8A BRAKE ROTOR KIT, front w/ rotor, bolts, bushings, springs & washers 1125CR, 1125R
>
