1125 Models Parts Catalog
2009

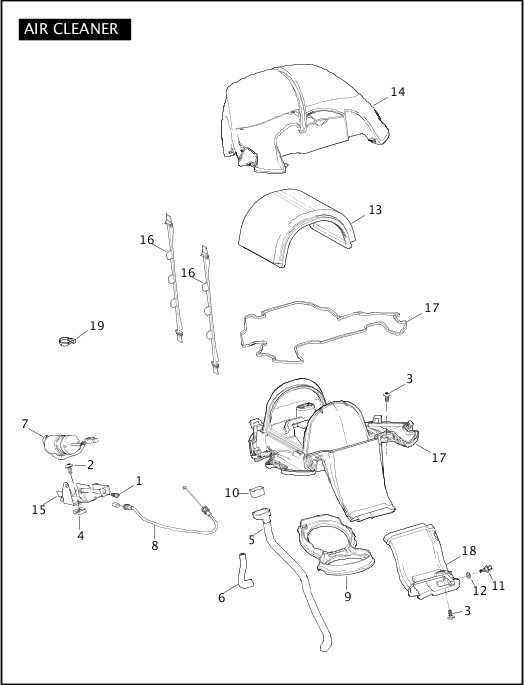

AIR CLEANER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AN1005.2CZ | SCREW (2) | 1125CR, 1125R | |
| 2 | CA0023.1AM | SCREW | 1125CR, 1125R | |
| 3 | CA0030.1AMA | SCREW (3) | 1125CR, 1125R | |
| 4 | CD0029.1AM | NUT, speed clip | 1125CR, 1125R | Feb 2017 |
| 5 | P1036.2AM | HOSE, engine breather | 1125CR, 1125R | |
| 6 | P0037.1AMA | HOSE, idle air control | 1125CR, 1125R | Feb 2017 |
| 7 | P0046.1AMB | INTAKE SOLENOID ASSEMBLY | 1125CR, 1125R | Feb 2017 |
| 8 | P0047.1AMA | INTAKE SOLENOID CABLE | 1125CR, 1125R | Feb 2017 |
| 9 | P0084.1AMH | GASKET, throttle body mount | 1125CR, 1125R | |
| 10 | P0089.1AMB | FILTER, breather hose | 1125CR, 1125R | Feb 2017 |
| 11 | P0138.K | SENSOR, IAT | 1125CR, 1125R | |
| 12 | P0139.K | GROMMET | 1125CR, 1125R | Feb 2017 |
| 13 | P0213.1AMA | AIR FILTER ELEMENT | 1125CR, 1125R | Feb 2017 |
| 14 | P0215.1AMA | AIRBOX COVER | 1125CR, 1125R | Feb 2017 |
| 15 | P0353.1AMXT | MOUNT, active intake solenoid | 1125CR, 1125R | Feb 2017 |
| 16 | P0358.1AMG | RETAINER, air filter (2) | 1125CR, 1125R | |
| 17 | P1700.1AM | BASEPLATE ASSEMBLY, airbox w/ 5, 9 & 16 | 1125CR, 1125R | |
| 18 | P0851.1AMB | INTAKE SNORKEL, ram air | 1125CR, 1125R | Feb 2017 |
| 19 | Y0303.2B | WIRETIE (2) | 1125CR, 1125R |
