1125 Models Parts Catalog
2009

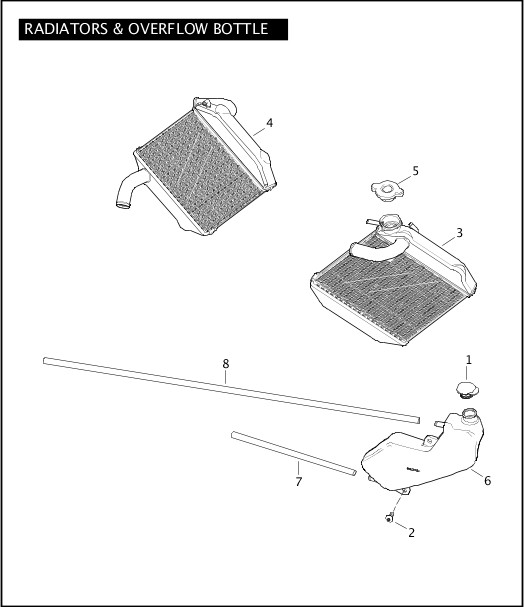

RADIATORS & OVERFLOW BOTTLE
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 26780-05A | CAP | 1125CR, 1125R | |
| 2 | CA0030.1AMA | SCREW (2) | 1125CR, 1125R | |
| 3 | Q0021.1AMA | RADIATOR, right w/ Q0068.1AM | 1125CR, 1125R | Feb 2017 |
| 4 | Q0022.1AMA | RADIATOR, left | 1125CR, 1125R | Feb 2017 |
| 5 | Q0068.1AM | PRESSURE CAP | 1125CR, 1125R | |
| 6 | Q0070.1AM | OVERFLOW TANK ASSEMBLY, w/ Q0234.1AM & Q0235.1AM | 1125CR, 1125R | Feb 2017 |
| 7 | Q0234.1AM | HOSE, overflow in | 1125CR, 1125R | |
| 8 | Q0235.1AM | HOSE, overflow out | 1125CR, 1125R |
