1125 Models Parts Catalog
2009

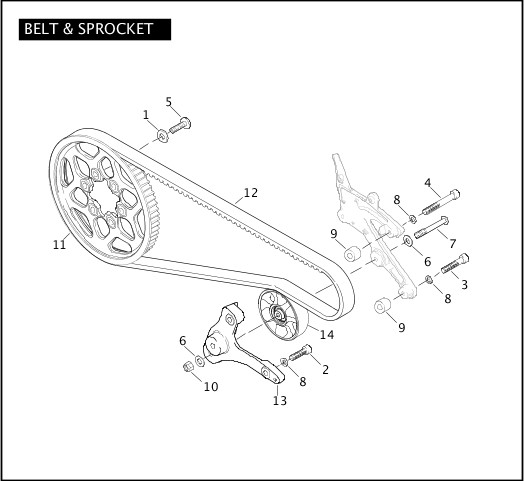

BELT & SPROCKET
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 6400HB | WASHER (6) | 1125CR, 1125R | |
| 2 | A08030.2CVB | SCREW | 1125CR, 1125R | Oct 2015 |
| 3 | A08045.2CCVB | SCREW | 1125CR, 1125R | Oct 2015 |
| 4 | A08070.2CVB | SCREW | 1125CR, 1125R | Oct 2015 |
| 5 | AA0609.11CXZB | SCREW (6) | 1125CR, 1125R | |
| 6 | BA0511.2Z | WASHER (2) | 1125CR, 1125R | |
| 7 | CA0020.02A8 | BOLT | 1125CR, 1125R | Feb 2017 |
| 8 | CB0002.9A7 | WASHER (3) | 1125CR, 1125R | Feb 2017 |
| 9 | CH0007.1AM | SPACER, rider footrest mount (2) | 1125CR, 1125R | Feb 2017 |
| 10 | DA0500.2CZ | LOCKNUT | 1125CR, 1125R | |
| 11 | G0400.1AMD | REAR SPROCKET, 70T | 1125R | Feb 2017 |
| G0400.1ATB | REAR SPROCKET, 76T | 1125CR | Feb 2017 |
|
| 12 | G0500.1AMF | DRIVE BELT, 145T | 1125R | |
| G0500.1ATA | DRIVE BELT, 149T | 1125CR | ||
| 13 | G0603.1AMD | BRACKET, idler pulley | 1125R | Feb 2017 |
| G0603.1ATZT | BRACKET, idler pulley | 1125CR | Feb 2017 |
|
| 14 | G0614.02A8D | WHEEL, idler pulley | 1125CR, 1125R |
