XB12X Ulysses Parts Catalog
2007

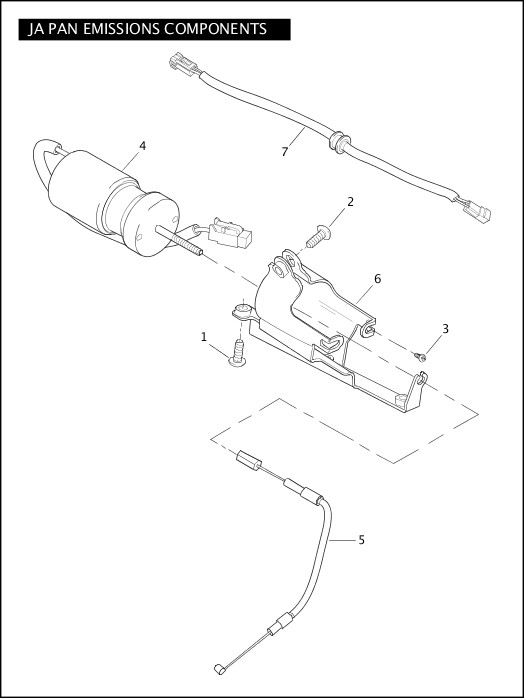

JAPAN EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0404.11CXVB | SCREW (3) | XB12X | Nov 2014 |
| 2 | AA0406.11CXVB | SCREW | XB12X | |
| 3 | AN1005.3CBBL | SCREW (2) | XB12X | Nov 2014 |
| 4 | P0046.2AC | SOLENOID ASSEMBLY | XB12X | Feb 2017 |
| 5 | P0047.2AC | SOLENOID CABLE | XB12X | |
| 6 | P0353.2AC | BRACKET, solenoid mounting | XB12X | Feb 2017 |
| 7 | Y0460.2ACA | SUB-HARNESS, active intake | XB12X | Nov 2014 |
| 74102-98BK | HOUSING, pin, 2-way (black) (not illustrated) | XB12X | ||
| 74112-98BK | HOUSING, socket, 2-way (black) (not illustrated) | XB12X | ||
| 74142-98 | PIN LOCK, 2-way (not illustrated) | XB12X | ||
| 74152-98 | SOCKET LOCK, 2-way (not illustrated) | XB12X | ||
| 74192-98 | PIN, terminal (not illustrated) | XB12X | ||
| 74193-98 | SOCKET, terminal (not illustrated) | XB12X |
