XB12X Ulysses Parts Catalog
2007

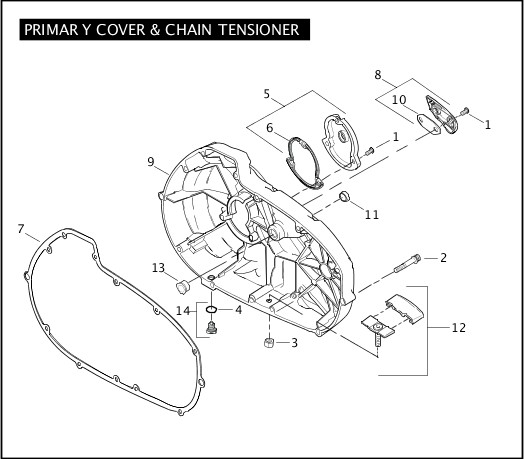

PRIMARY COVER & CHAIN TENSIONER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 943 | SCREW, sems (5) | XB12X | |
| 2 | 4824 | SCREW, sems (black) (13) | XB12X | Oct 2015 |
| 3 | 7804 | LOCKNUT, chain adjustment | XB12X | |
| 4 | 11105 | O-RING | XB12X | |
| 5 | 25349-03 | COVER KIT, clutch, w/ 25377-03A | XB12X | |
| 6 | 25377-03A | GASKET, clutch cover | XB12X | |
| 7 | 25378-02B | GASKET, primary cover | XB12X | |
| 8 | 25380-03 | COVER KIT, inspection, w/ 34819-03 | XB12X | |
| 9 | 25542-06A | PRIMARY COVER, w/ 40520-63 (painted magnesium tone) | XB12X | |
| 10 | 34819-03A | GASKET, inspection cover | XB12X | |
| 11 | 37107-06 | OIL SEAL, shifter shaft | XB12X | |
| 12 | 40039-02B | ADJUSTER ASSEMBLY, chain, w/ shoe, collar, plate & screw | XB12X | |
| 13 | 40574-06 | BUSHING | XB12X | |
| 14 | 60328-98B | DRAIN PLUG KIT, w/ 11105 | XB12X |
