XB12X Ulysses Parts Catalog
2007

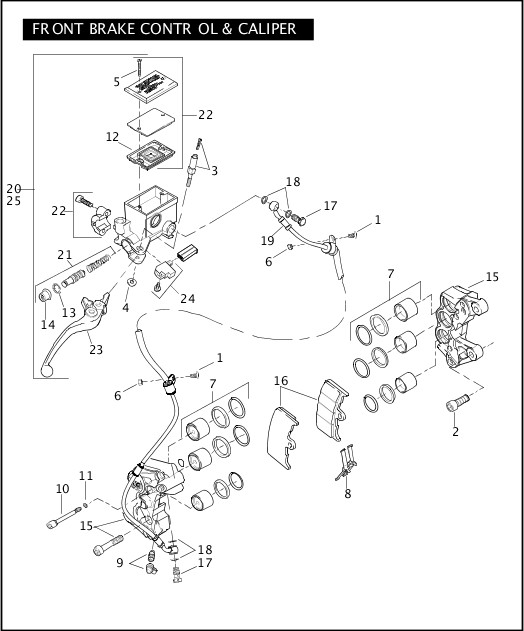

FRONT BRAKE CONTROL & CALIPER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0406.11CVB | SCREW | XB12X | |
| 2 | AA0608.2CXZB | SCREW, front brake caliper (2) | XB12X | |
| 3 | C0064.1AJ | BRAKE PIVOT SHAFT | XB12X | |
| 4 | CD0013.9 | JAM NUT | XB12X | |
| 5 | CA0200.R | SCREW, front master cylinder cover (2) | XB12X | |
| 6 | DA0400.2CZ | LOCKNUT | XB12X | |
| 7 | H0020.02A8 | PISTON SET | XB12X | |
| 8 | H0021.02A8 | PAD SPRING, caliper | XB12X | |
| 9 | H0022.F | FITTING, brake bleeder, w/ cap | XB12X | |
| 10 | H0031.02A8 | PIN HANGER SET, caliper | XB12X | |
| 11 | H0032.02A8 | STOPPER, front caliper | XB12X | |
| 12 | H0035.9 | DIAPHRAGM COVER, front master cylinder | XB12X | |
| 13 | H0054.9 | CIRCLIP, brake piston | XB12X | |
| 14 | H0055.9 | BOOT, brake piston | XB12X | |
| 15 | H0110.02A8 | BRAKE CALIPER ASSEMBLY, front, w/ 7, 8, 9, 10, 11& 16 | XB12X | |
| 16 | H0300.02A8 | BRAKE PAD | XB12X | |
| 17 | H0405.9B | BANJO BOLT, master cylinder (2) | XB12X | |
| 18 | H0412.01A0 | WASHER (4) | XB12X | |
| 19 | H1531.1AK | BRAKE LINE ASSEMBLY, front, w/ 17 & 18 | XB12X | Feb 2017 |
| 20 | N0200.1AJ | MASTER CYLINDER ASSEMBLY, front, complete, w/ 3, 4, 5, 12, 13, 14, 23, 24, 25 & 26 | XB12X | |
| N0210.R | CAP SET (not illustrated) | XB12X | ||
| 21 | N0220.F | REPAIR KIT, front master cylinder | XB12X | |
| 22 | N0259.9 | CLAMP, front master cylinder | XB12X | |
| 23 | N1202.1AJ | LEVER, front brake, w/ C0064.1AJ & CD0013.9 | XB12X | |
| 24 | Y0810.9 | SWITCH KIT, brake lever | XB12X | |
| 25 | N0096.1AJ | MASTER CYLINDER ASSEMBLY, complete, w/ 13, 14, 23, 23, 24, 25, 26 & label (JAPAN) | XB12X | Nov 2014 |
