XB12X Ulysses Parts Catalog
2007

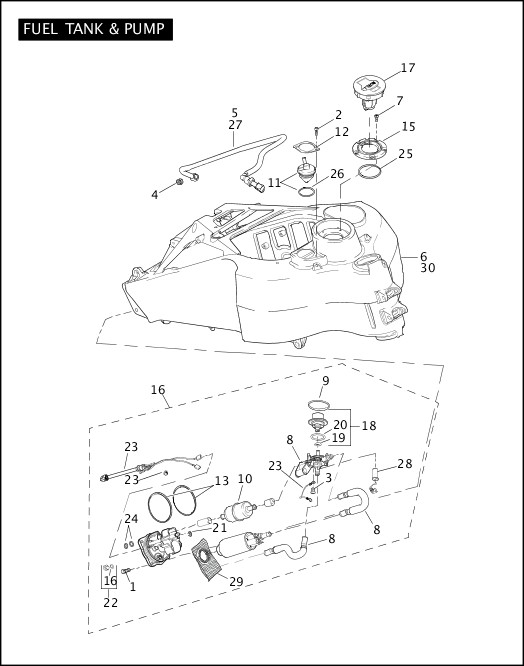

FUEL TANK & PUMP
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0406.2CZB | SCREW (4) | XB12X | Feb 2017 |
| AA0406.2CXZB | SCREW, fuel pump to fuel fastener (not illustrated) (4) | XB12X | ||
| 2 | AN1004.2CZ | SCREW (2) | XB12X | |
| 3 | CA0027.3A8 | SCREW | XB12X | Jul 2015 |
| 4 | DA0500.8FZ | NUT | XB12X | |
| 5 | HS0015.02A8 | SLEEVE | XB12X | Jul 2015 |
| 6 | L0600.2AKYBP | FRAME/FUEL TANK ASSEMBLY KIT, front w/ bearing races & labels. Fuel pump & lines not included. (See FRAME pages for more information on kit) (DOMESTIC) | XB12X | Mar 2016 |
| L0605.2AKYBP | FRAME/FUEL TANK ASSEMBLY KIT, front w/ bearing races & labels. Fuel pump & lines not included. (See FRAME pages for more information on kit) (CALIFORNIA) | XB12X | Mar 2016 |
|
| 7 | P0002.02A8 | SCREW (5) | XB12X | |
| 8 | P0080.3A8 | HOUSING, regulator, w/ hoses | XB12X | |
| 9 | P0045.3A8 | RING, regulator | XB12X | Jul 2015 |
| 10 | P0101.02A8 | FUEL FILTER, in line | XB12X | |
| 11 | P0115.02A8B | FUEL CELL VENT, w/ fuel cell vent o-ring | XB12X | |
| 12 | P0119.02A8A | RETAINING PLATE, fuel cell vent | XB12X | |
| 13 | P0121.02A8 | O-RING (2) | XB12X | |
| 14 | P0127.02A8 | O-RING | XB12X | Jul 2015 |
| 15 | P0128.02A8A | RETAINING RING, fuel cap | XB12X | |
| 16 | P0130.02A8A | FUEL PUMP ASSEMBLY | XB12X | |
| 17 | P0153.02A8 | CAP, fuel tank, w/ key(s) (CANADA, DOMESTIC, ENGLAND, EUROPE, JAPAN) | XB12X | |
| P0164.K | SEAL, pump outlet (not illustrated) | XB12X | ||
| 18 | P0166.K | REGULATOR, w/ o-rings | XB12X | |
| 19 | P0177.KA | O-RING, small regulator | XB12X | Jul 2015 |
| 20 | P0178.KA | O-RING, large regulator | XB12X | Jul 2015 |
| 21 | P0187.02A8 | E-CLIPS | XB12X | Nov 2016 |
| 22 | P1203.3A8 | DRAIN PLUG, w/ o-ring | XB12X | |
| 23 | P0194.3A8 | WIRE ASSEMBLY, w/ screw kit | XB12X | |
| 24 | P0198.02A8 | O-RING KIT, banjo stud | XB12X | |
| 25 | P0228.02A8 | O-RING, fuel cap retaining ring | XB12X | |
| 26 | P0229.02A8 | O-RING, fuel cell vent | XB12X | |
| P0356.3A8 | CLAMP, fuel filter | XB12X | Jul 2015 |
|
| 27 | P0464.02A8A | FUEL LINE ASSEMBLY, w/ HS0015.02A8 | XB12X | |
| 28 | P0789.K | SENSOR, low level | XB12X | |
| 29 | P0806.K | FILTER, fuel pump, internal | XB12X | |
| 30 | L0601.2AKYBP | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels. Fuel pump & lines not included. (See FRAME pages for more information on kit) (CANADA) | XB12X | Mar 2016 |
| L0602.1AKYBP | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels. Fuel pump & lines not included. (See FRAME pages for more information on kit) (ENGLAND, EUROPE) | XB12X | Mar 2016 |
|
| L0603.1AKYBP | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels. Fuel pump & lines not included. (See FRAME pages for more information on kit) (AUSTRALIA) | XB12X | Mar 2016 |
|
| L0604.2AKYBP | FRAME/FUEL TANK ASSEMBLY KIT, front, w/ bearing races & labels. Fuel pump & lines not included. (See FRAME pages for more information on kit) (JAPAN) | XB12X |
