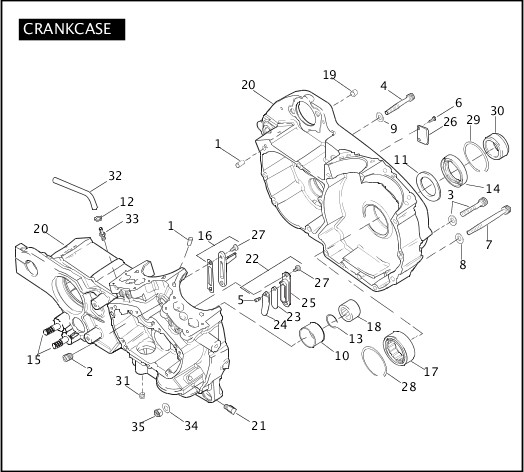

| 1 |
358
|
DOWEL PIN (4) |
XB12X |
|
| 2 |
720
|
PLUG, timing |
XB12X |
|
| 3 |
1028
|
SCREW, w/ washer (9) |
XB12X |
|
| 4 |
879A
|
SCREW (5) |
XB12X |
|
| 5 |
1044
|
SCREW |
XB12X |
|
| 6 |
4091
|
SCREW (2) |
XB12X |
|
| 7 |
AA0636.2CZ
|
SCREW |
XB12X |
|
| 8 |
L0178.K
|
WASHER |
XB12X |
|
| 9 |
6314W
|
WASHER (5) |
XB12X |
|
| 10 |
8881
|
BEARING RACE |
XB12X |
|
| 11 |
8973
|
WASHER, thrust |
XB12X |
|
| 12 |
10080
|
CLAMP, hose |
XB12X |
|
| 13 |
11177A
|
RETAINING RING |
XB12X |
|
| 14 |
12068
|
OIL SEAL |
XB12X |
|
| 15 |
16899-02
|
STUD, tap end (2) |
XB12X |
|
| 16 |
22265-00Y
|
OIL JET ASSEMBLY, complete (2) |
XB12X |
|
| 17 |
24604-00D
|
BEARING |
XB12X |
|
| 18 |
24647-87
|
BEARING, gear shaft (blue) |
XB12X |
|
|
24650-87
|
BEARING, gear shaft (red) |
XB12X |
|
|
24659-87
|
BEARING, gear shaft (white/gray) |
XB12X |
|
|
24660-87
|
BEARING, gear shaft (green) |
XB12X |
|
| 19 |
24754-75A
|
DOWEL PIN (2) |
XB12X |
|
| 20 |
24439-06
|
CRANKCASE SET, w/ bushings & bearings (silver) |
XB12X |
|
| 21 |
26365-02A
|
FITTING, connector - 90 degree |
XB12X |
|
| 22 |
26921-02
|
REED VALVE ASSEMBLY |
XB12X |
|
| 23 |
26922-02
|
VALVE, reed |
XB12X |
|
| 24 |
26923-02
|
STOP, reed valve |
XB12X |
|
| 25 |
26924-02
|
REED BLOCK |
XB12X |
|
| 26 |
29950-91
|
COVER, stator wires |
XB12X |
|
| 27 |
32617-00Y
|
SCREW, self-tapping (6) |
XB12X |
|
| 28 |
35114-02
|
RING, retaining |
XB12X |
|
| 29 |
35118-03
|
RING, retaining |
XB12X |
|
| 30 |
40254-02
|
SPACER, sprocket shaft |
XB12X |
|
| 31 |
45830-48
|
PLUG |
XB12X |
|
| 32 |
62352-94B
|
HOSE, preformed |
XB12X |
|
| 33 |
63533-41A
|
FITTING, connector - vent |
XB12X |
|
| 34 |
BA0613.2Z
|
WASHER |
XB12X |
|
| 35 |
DA0600.11CZ
|
LOCKNUT |
XB12X |
|
