XB12X Ulysses Parts Catalog
2007

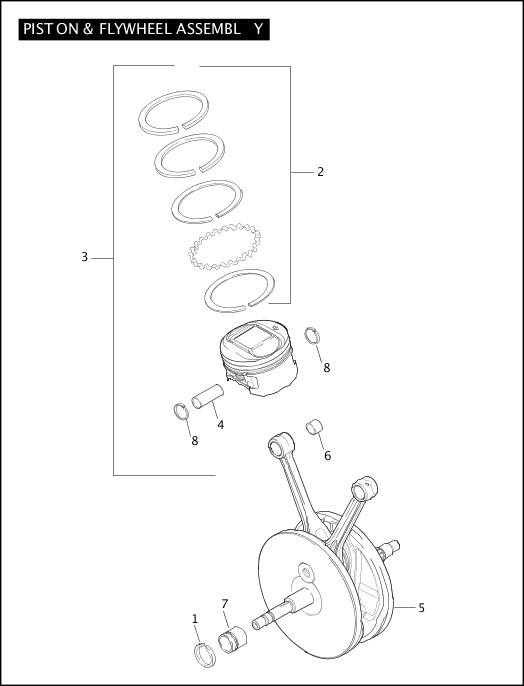

PISTON & FLYWHEEL ASSEMBLY
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 11177A | RETAINING RING | XB12X | |
| 2 | 21948-02 | PISTON RING SET, standard (2) | XB12X | |
| 3 | 22244-04 | PISTON & RINGS ASSEMBLY, standard (2) | XB12X | |
| 4 | 22765-02 | PISTON PIN (2) | XB12X | |
| 5 | 24215-04A | FLYWHEEL & CONNECTING ROD ASSEMBLY, w/ 24354-87A & 24658-87 | XB12X | |
| 6 | 24331-36 | BUSHING, piston pin - standard (2) | XB12X | |
| 24332-36 | BUSHING, piston pin - 0.01 oversize (2) | XB12X | ||
| 7 | 24658-87 | INNER RING | XB12X | |
| 8 | 22589-83B | LOCK RING, piston pin (2) | XB12X |
