XB12X Ulysses Parts Catalog
2007

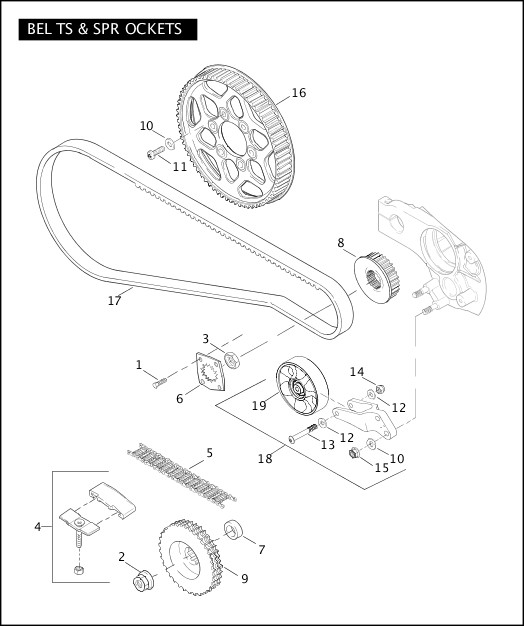

BELTS & SPROCKETS
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 3594 | SCREW (2) | XB12X | |
| 2 | 7839 | NUT, engine sprocket | XB12X | |
| 3 | 35211-91B | NUT, transmission sprocket | XB12X | |
| 4 | 40039-02B | ADJUSTER ASSEMBLY, chain, w/ shoe, collar, plate & screw | XB12X | |
| 5 | 40147-04 | PRIMARY CHAIN | XB12X | |
| 6 | 40251-92A | LOCK PLATE | XB12X | |
| 7 | 40254-02 | SPACER, sprocket shaft | XB12X | |
| 8 | 40288-95 | SPROCKET ASSEMBLY, transmission, 27T | XB12X | |
| 9 | 40290-04 | SPROCKET, triple row, 38T | XB12X | |
| 10 | 6400HB | WASHER (8) | XB12X | |
| 11 | AA0609.11CXZB | SCREW (6) | XB12X | |
| 12 | BA0511.2Z | WASHER (2) | XB12X | |
| 13 | CA0020.02A8 | SCREW | XB12X | Feb 2017 |
| 14 | DA0500.2CZ | LOCKNUT | XB12X | |
| 15 | DA0600.12FAZB | LOCKNUT, flange (2) | XB12X | |
| 16 | G0400.1AA | REAR SPROCKET, 65T | XB12X | |
| 17 | G0500.1AKD | DRIVE BELT | XB12X | |
| 18 | G0604.1AK | IDLER PULLEY ASSEMBLY, w/ pulley wheel & bracket (2 dimples) | XB12X | |
| 19 | G0614.02A8D | WHEEL, idler pulley | XB12X |
