House of BUELL

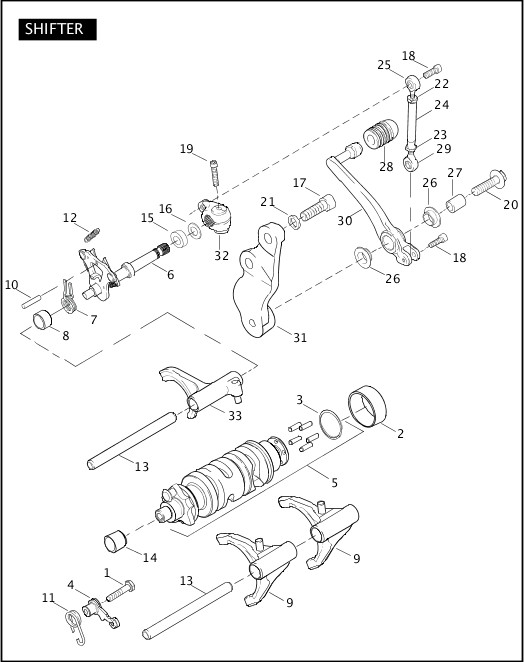

Index No.	Part No.	Description	Models	Obselete
1	3997A	BOLT	XB12X
2	9187	BEARING	XB12X
3	11360	RING, retaining	XB12X
4	33540-06	SPRING SLEEVE ASSEMBLY, detent	XB12X
5	33641-06	SHIFTER CAM ASSEMBLY, w/ 11360	XB12X
	33900-99	SWITCH, neutral (not illustrated)	XB12X
6	34014-06	SHIFTER LEVER ASSEMBLY	XB12X
7	34064-00B	SPRING, shifter return	XB12X
8	34076-02	BUSHING	XB12X
9	34157-06	FORK ASSEMBLY, shifter (2)	XB12X
10	34163-02	PIN, shifter stop	XB12X
11	34483-06	SPRING, detent	XB12X
12	34491-02A	SPRING, extension (2)	XB12X
13	34981-02	SHAFT, shifter forks (2)	XB12X
14	34982-02	BUSHING, right hand crankcase	XB12X
15	37107-06	OIL SEAL	XB12X
16	7080	WASHER, rubber	XB12X
17	AA0508.2CXZB	SCREW (2)	XB12X
18	AN1006.2CXZB	BOLT (2)	XB12X
19	AN1009.2CXZB	BOLT	XB12X
20	CA0015.02A8	BOLT, flange head	XB12X
21	CB0002.T	WASHER (2)	XB12X
22	CD0007.02A8	JAM NUT	XB12X
23	DN1000.4FZB	JAM NUT, thin	XB12X
24	N0320.1AK	LINKAGE ASSEMBLY, shifter w/ 22, 23, 25 & 29	XB12X	Feb 2017
25	N0507.01A1A	ROD END, shift linkage, male right hand thread	XB12X
26	N0513.T	BEARING, pedal (2)	XB12X
27	N0599.02A8A	SLEEVE, shift/brake lever	XB12X
28	N0600.02A8A	TOE PEG, shift lever	XB12X
29	N0606.02A8A	ROD END, shift linkage, male left hand thread	XB12X
30	N0630.02A8A	SHIFT PEDAL ASSEMBLY, w/ 26 & 28	XB12X
31	N0802.1AK	BRACKET, shifter	XB12X
32	T0225.02A8	LEVER, engine	XB12X
33	34162-06	FORK ASSEMBLY, shifter	XB12X
