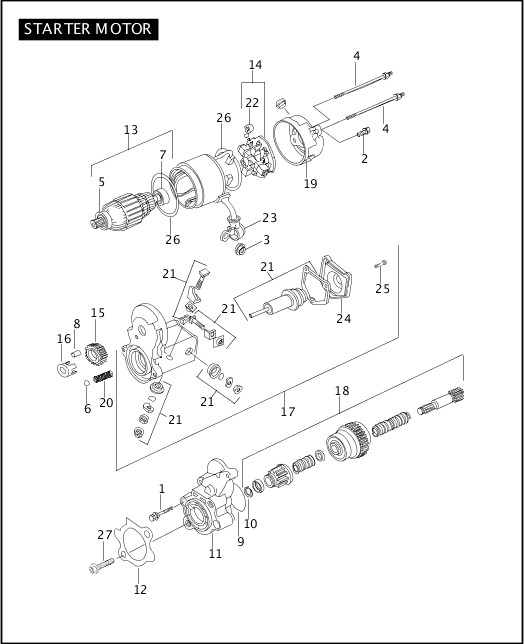

| 1 |
928
|
BOLT, starter (2) |
XB12X |
|
| 2 |
929A
|
SCREW, w/ o-ring (2) |
XB12X |
|
| 3 |
3403
|
LOCKNUT |
XB12X |
|
| 4 |
3559
|
BOLT, through (2) |
XB12X |
|
| 5 |
8871
|
BALL BEARING |
XB12X |
|
| 6 |
8879
|
BALL |
XB12X |
|
| 7 |
8883
|
BALL BEARING |
XB12X |
|
| 8 |
9077
|
CLUTCH ROLLER (5) |
XB12X |
|
| 9 |
11116
|
O-RING |
XB12X |
|
| 10 |
31328-91
|
RING, snap |
XB12X |
|
| 11 |
31390-91E
|
STARTER MOTOR, complete (black) |
XB12X |
|
| 12 |
31488-81B
|
GASKET, starter motor |
XB12X |
|
| 13 |
31515-90
|
ARMATURE ASSEMBLY |
XB12X |
|
| 14 |
31518-90
|
HOLDER ASSEMBLY, starter brush |
XB12X |
|
| 15 |
31525-90
|
GEAR, idler |
XB12X |
|
| 16 |
31530-90
|
RETAINER, idler |
XB12X |
|
| 17 |
31537-98
|
SWITCH ASSEMBLY, magnetic |
XB12X |
|
| 18 |
31556-91B
|
CLUTCH SUB-ASSEMBLY, w/ 31328-91 & 31390-91E |
XB12X |
|
| 19 |
31599-91
|
FRAME, starter end |
XB12X |
|
| 20 |
31600-90
|
SPRING, return |
XB12X |
|
| 21 |
31603-91
|
STARTER SOLENOID REPAIR KIT |
XB12X |
|
| 22 |
31661-90
|
SPRING, starter (4) |
XB12X |
|
| 23 |
31662-90
|
CAP TERMINAL, rubber |
XB12X |
|
| 24 |
31688-90
|
COVER, solenoid |
XB12X |
|
| 25 |
31689-90
|
BOLT, w/ washer (3) |
XB12X |
|
| 26 |
31695-90
|
O-RING, yoke (2) |
XB12X |
|
| 27 |
45902-00
|
SCREW, w/ washer (2) |
XB12X |
|
