XB12X Ulysses Parts Catalog
2007

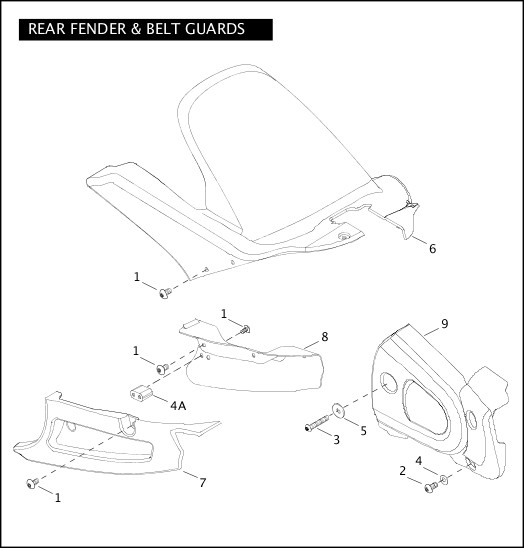

REAR FENDER & BELT GUARDS
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0404.11CXVB | SCREW (9) | XB12X | Nov 2014 |
| 2 | AA0406.11CVB | SCREW (2) | XB12X | |
| 3 | AA0412.11CXVB | SCREW | XB12X | |
| 4 | BA0409.6BL | WASHER (2) | XB12X | |
| 4A | C0082.4A8A | STANDOFF | XB12X | |
| 5 | CB0012.02A8 | WASHER | XB12X | Feb 2017 |
| 6 | M0550.1AK | FENDER, rear inner | XB12X | |
| 7 | M0560.1AK | BELT GUARD, lower | XB12X | Feb 2017 |
| 8 | M0561.1AKB | STONE GUARD | XB12X | Oct 2015 |
| 9 | M0580.1AK | SPROCKET COVER | XB12X | Nov 2014 |
| M0549.1AD | FENDER, outer (AUSTRALIA) (not illustrated) | XB12X | Feb 2017 |
