XB12X Ulysses Parts Catalog
2007

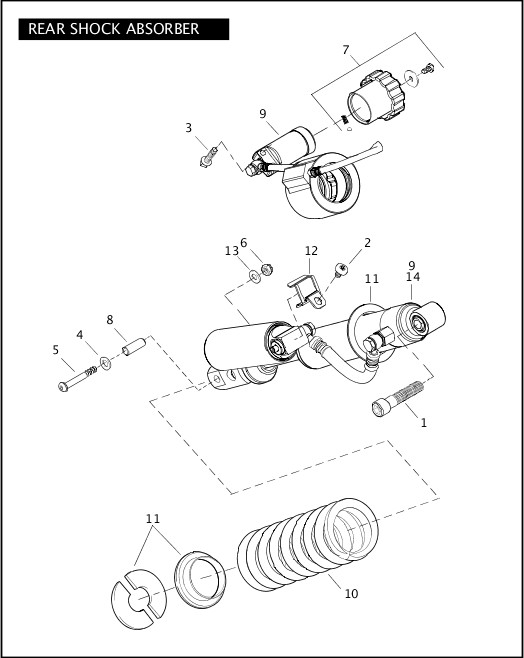

REAR SHOCK ABSORBER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | A1065.2CZB | SCREW | XB12X | |
| 2 | AA0404.11CVB | SCREW | XB12X | Nov 2014 |
| 3 | AA0408.21CRZB | SCREW (2) | XB12X | |
| 4 | BA0511.2Z | WASHER | XB12X | |
| 5 | CA0020.02A8 | SCREW | XB12X | Feb 2017 |
| 6 | DA0500.10CZ | LOCKNUT | XB12X | |
| 7 | K0004.1AK | PRELOAD ADJUSTMENT KNOB | XB12X | |
| 8 | K0402.02A8A | SLEEVE, shock mount | XB12X | Feb 2017 |
| 9 | K0410.1AK | REAR SHOCK ASSEMBLY, includes shock spring & retainer kit | XB12X | Feb 2017 |
| 10 | K0424.1AK | SPRING, rear shock | XB12X | |
| 11 | K0425.02A8 | RETAINER KIT, shock | XB12X | |
| 12 | K0437.1AKA | BRACKET, shock reservoir | XB12X | Feb 2017 |
| 13 | L0178.K | SPACER, tie bar | XB12X | |
| 14 | K0001.1AK | REAR SHOCK ASSEMBLY, includes shock spring & retainer kit (JAPAN) | XB12X |
