XB12X Ulysses Parts Catalog
2007

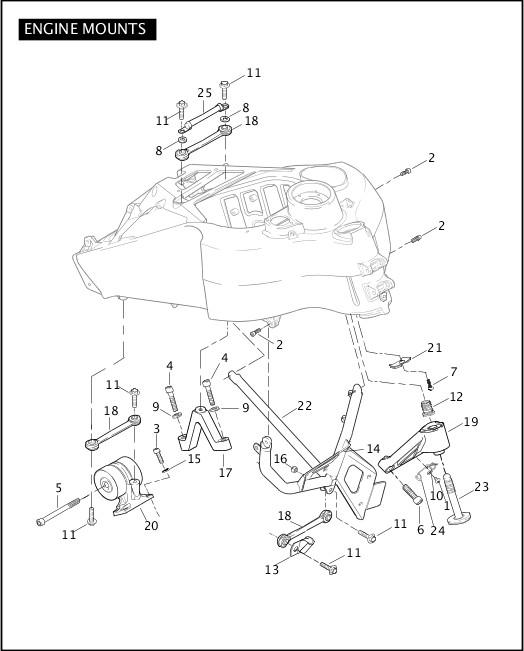

ENGINE MOUNTS
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0404.11CXVB | SCREW | XB12X | Nov 2014 |
| 2 | AA0405.2CXZB | SCREW (3) | XB12X | |
| 3 | AA0508.2CZB | BOLT (4) | XB12X | Feb 2017 |
| 4 | AA0615.2CZB | SCREW (2) | XB12X | |
| 5 | AA0634.2CZB | SCREW | XB12X | Jan 2017 |
| 6 | AA0712.2CZB | SCREW (2) | XB12X | Jun 2016 |
| 7 | AN0805.5CSS | SCREW | XB12X | Feb 2017 |
| 8 | BA0511.2Z | WASHER (2) | XB12X | |
| 9 | BA0613.2Z | WASHER (2) | XB12X | |
| 10 | B0613.1Z | WASHER | XB12X | |
| 11 | CA0015.02A8 | BOLT, flange head (6) | XB12X | |
| 12 | C0028.02A8A | THREAD INSERT | XB12X | |
| 13 | C0048.02A8 | CLAMP | XB12X | Nov 2014 |
| 14 | C0089.4A8 | INSERT (3) | XB12X | |
| 15 | CB0013.02A8 | WASHER (4) | XB12X | Feb 2017 |
| 16 | DA0500.2CZ | LOCKNUT | XB12X | |
| DA0500.11CZ | LOCKNUT (not illustrated) | XB12X | Feb 2017 |
|
| 17 | L0160.02A8A | MOUNT, center tie bar | XB12X | Feb 2017 |
| 18 | L0500.02A8 | TIE BAR ASSEMBLY (3) | XB12X | Feb 2017 |
| 19 | L1501.02A8 | ISOLATOR ASSEMBLY, front | XB12X | |
| 20 | L0502.02A8 | ISOLATOR ASSEMBLY, rear | XB12X | |
| 21 | L0506.02A8 | SNUBBER, front isolator upper | XB12X | Feb 2017 |
| 22 | L1511.4A8YT | W BRACKET ASSEMBLY (designer black) | XB12X | |
| 23 | CA0013.02A8 | BOLT, front isolator | XB12X | |
| 24 | N0012.1AA | WIREFORM, clutch cable | XB12X | |
| 25 | Y0307.02A8 | STRAP, ground | XB12X | Feb 2017 |
