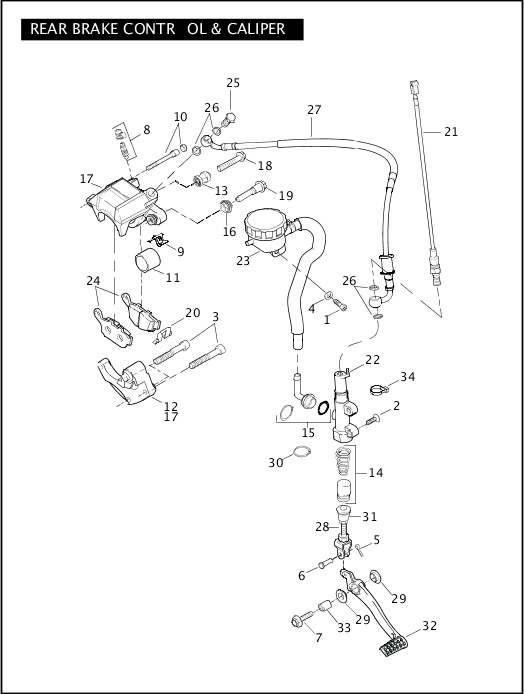

Index No.	Part No.	Description	Models	Obselete
1	A0620.2CZB	BOLT	XB12X	Nov 2014
2	AA0405.2CXZB	SCREW (2)	XB12X
3	AA0620.2CZB	SCREW (2)	XB12X
4	B0613.1Z	WASHER	XB12X
5	C0148.T	COTTER PIN	XB12X
6	C0232.TA	CLEVIS PIN, rear master cylinder	XB12X
7	CA0015.02A8	BOLT, flange head	XB12X
8	H0022.F	FITTING, brake bleeder, w/ cap	XB12X
9	H0024.F	CLIP	XB12X
10	H0026.F	PIN	XB12X
11	H0030.T	PISTON SET, rear caliper	XB12X
12	H0033.02A8A	CARRIER ASSEMBLY, complete w/ H0118.02A8	XB12X
13	H0034.T	BOOT SET, flange bolt	XB12X
14	H0040.F	PISTON SET, rear master cylinder	XB12X
15	H0041.F	CONNECTOR, rear master cylinder w/ o-ring & circlip	XB12X
16	H0053.T	BOOT, bracket pin	XB12X
17	H0102.02A8A	CALIPER & CARRIER, rear, w/ 8, 9, 10, 11, 12, 13, 16, 18, 19 & 24	XB12X	Feb 2017
18	H0105.F	BOLT, flange caliper	XB12X
19	H0106.F	PIN BOLT, rear caliper	XB12X
20	H0118.02A8	RETAINER, rear caliper	XB12X
21	H0203.02A8	SWITCH, rear brake light	XB12X
22	H0205.1AK	MASTER CYLINDER, rear, w/ 14, 15, 28, 30 & 31	XB12X
23	H0206.1AK	RESERVOIR & HOSE ASSEMBLY	XB12X
	H0212.02A8	RESERVOIR	XB12X
24	H0301.T	BRAKE PAD ASSEMBLY, rear	XB12X
25	H0405.9B	BANJO BOLT, master cylinder	XB12X
26	H0412.01A0	WASHER (4)	XB12X
	H0419.1AK	BRACKET, rear brake line (not illustrated)	XB12X	Feb 2017
27	H1522.1AK	BRAKE LINE ASSEMBLY, rear, w/ H0203.02A8, H0405.9B & H0412.01A0	XB12X	Feb 2017
28	N0505.1AD	ROD, brake linkage	XB12X
29	N0513.T	BEARING, pedal (2)	XB12X
30	N0516.T	CIRCLIP	XB12X
31	N0517.T	BOOT, brake piston	XB12X
32	N0530.02A8	PEDAL ASSEMBLY, w/ N0513.T	XB12X
33	N0599.02A8A	SLEEVE, shift/brake lever	XB12X
34	Y0303.2B	CABLE STRAP	XB12X
