House of BUELL

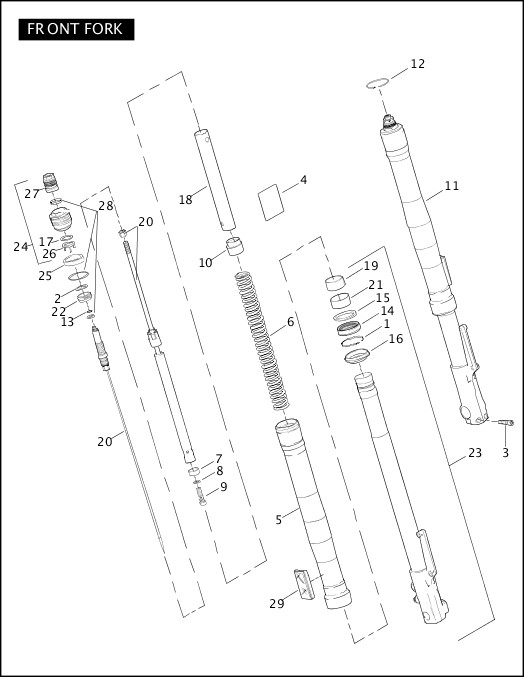

Index No.	Part No.	Description	Models	Obselete
1	45842-77A	OIL SEAL STOPPER RING (2)	XB12X
2	45980-96	WASHER, preload (2)	XB12X
3	AA0512.2CZB	BOLT, axle (4)	XB12X	Feb 2017
4	C3009.E	PAD, protective (2)	XB12X
5	J0107.1AK	OUTER TUBE (2)	XB12X	Feb 2015
6	J0113.2AK	SPRING, fork (2)	XB12X
7	J0114.02A8	CENTERING PLATE (2)	XB12X
8	J0115.02A8	WASHER, fork (2)	XB12X
9	J0116.02A8	BOLT, center (2)	XB12X
10	J0117.3A8	SPRING JOINT, fork (2)	XB12X
11	J0121.2AK	FRONT FORK ASSEMBLY, left w/ 5, 6, 7, 8, 9, 10, 13, 17, 18, 20, 22, 23, 24, 25, 26, 27 & 28	XB12X	Nov 2014
	J0122.2AK	FRONT FORK ASSEMBLY, right w/ 5, 6, 7, 8, 9, 10, 13, 17, 18, 20, 22, 23, 24, 25, 26, 27 & 27	XB12X	Nov 2014
12	J0124.02A8	STOPPER RING (2)	XB12X	Feb 2017
13	J8124.02A8	SNAP RING (2)	XB12X
14	J8127.3A8	OIL SEAL (2)	XB12X
15	J8128.3A8	SEAL SPACER (2)	XB12X
16	J8130.3A8	DUST SEAL (2)	XB12X
17	J8134.1AK	SPRING JOINT	XB12X
18	J8135.1AK	SPRING COLLAR, fork (2)	XB12X	Nov 2014
19	J8138.3A8	SLIDE BUSHING (2)	XB12X
20	J8139.1AK	DAMPER ASSEMBLY, includes rebound adjuster assembly, damper locknut, damper assembly (2)	XB12X	Nov 2014
21	J8140.3A8	GUIDE BUSHING (2)	XB12X
22	J8141.02A8	SLIDER PISTON (2)	XB12X
23	J8142.1AK	SLIDER COMPONENT ASSEMBLY, left fork, w/ 1, 14, 15, 16, 19 & 21	XB12X
	J8143.1AK	SLIDER COMPONENT ASSEMBLY, right fork, w/ 1, 14, 15, 16, 19 & 21	XB12X
24	J8144.3A8	PRELOAD ADJUSTMENT ASSEMBLY, w/ 17, 26, 27 & 28	XB12X
25	J8146.1AK	SEAT, rubber	XB12X	Apr 2015
26	J8147.3A8	SPRING ADJUSTER PLATE, complete fork	XB12X
27	J8148.3A8	SPRING ADJUST, fork	XB12X
28	J9147.3A8	O-RING SET (2)	XB12X
29	M0106.02A8	REFLECTOR ASSEMBLY, amber (2)	XB12X
