XB12X Ulysses Parts Catalog
2007

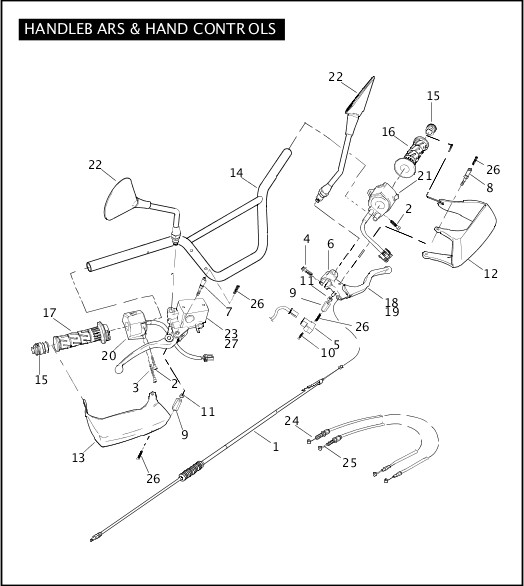

HANDLEBARS & HAND CONTROLS
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 38726-06 | CLUTCH CABLE | XB12X | |
| 70345-84 | RETAINER, harness (not illustrated) (4) | XB12X | ||
| 2 | A0525.2CBL | SCREW (3) | XB12X | |
| 3 | A0540.2CBL | SCREW | XB12X | |
| 4 | A0622.21CBL | SCREW, clutch lever pinch | XB12X | |
| C0048.02A8 | CLAMP, clutch cable (not illustrated) | XB12X | Nov 2014 |
|
| 5 | C0145.T | SWITCH, clutch lever | XB12X | |
| 6 | C0149.T | BRACKET, clutch lever | XB12X | |
| 7 | C0064.1AJ | BRAKE PIVOT SHAFT | XB12X | |
| 8 | C0065.1AJ | CLUTCH PIVOT SHAFT | XB12X | |
| 9 | C0066.1AJ | PIVOT SHAFT RISER (2) | XB12X | |
| 10 | CA0006.T | SCREW, switch mounting | XB12X | |
| 11 | CD0001.T | NUT, clutch lever assembly | XB12X | |
| 12 | N0007.1AJMBP | DEFLECTOR, left | XB12X | |
| 13 | N0017.1AJMBP | DEFLECTOR, right | XB12X | |
| 14 | N0037.1AKYBP | HANDLEBAR (graphite grey) | XB12X | |
| 15 | N0053.1AJ | END CAP (2) | XB12X | |
| 16 | N0050.K | HAND GRIP, left | XB12X | |
| 17 | N0051.K | HAND GRIP, right | XB12X | |
| 18 | N1102.1AJ | CLUTCH LEVER, w/ C0065.1AJ & CD0001.T | XB12X | |
| 19 | N0104.1AJ | CLUTCH LEVER ASSEMBLY, w/ 5, 6, 10 & 18 | XB12X | |
| 20 | N0158.TA | SWITCH GEAR, right, w/ A0525.2CBL & A0540.2CBL | XB12X | |
| 21 | N0159.TA | SWITCH GEAR, left, w/ A0525.2CBL (2) | XB12X | |
| 22 | N0161.01A1A | MIRROR (2) | XB12X | |
| 23 | N0200.1AJ | MASTER CYLINDER ASSEMBLY, front, complete (AUSTRALIA, CANADA, DOMESTIC, ENGLAND, EUROPE) | XB12X | |
| 24 | N0307.1AK | CABLE, throttle control | XB12X | |
| 25 | N0308.1AK | CABLE, idle control | XB12X | |
| 26 | A05016.8CXVB | SCREW (4) | XB12X | |
| 27 | N0096.1AJ | MASTER CYLINDER ASSEMBLY, w/ lever & label(s) (JAPAN) | XB12X | Nov 2014 |
