XB12X Ulysses Parts Catalog
2007

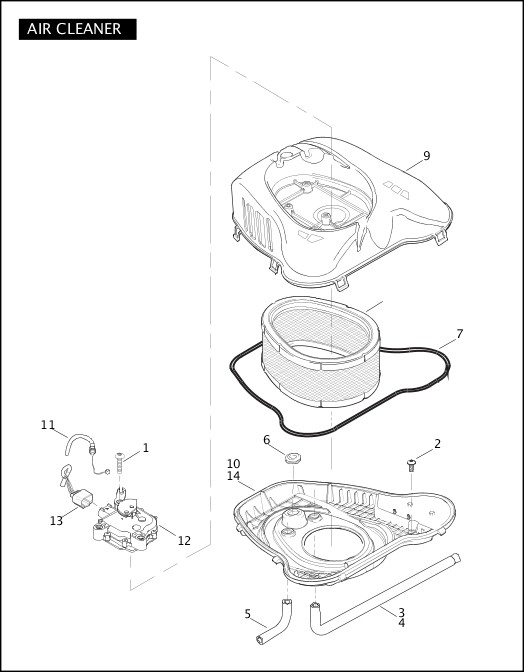

AIR CLEANER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AN1010.11FVB | SCREW (3) | XB12X | Nov 2014 |
| 2 | CA0012.02A8 | SCREW, shoulder (4) | XB12X | |
| 3 | HS0014.02A8 | SLEEVE | XB12X | |
| 4 | HS0016.02A8 | BREATHER HOSE, front, w/ HS0014.02A8 | XB12X | |
| 5 | HS0455.02A8 | BREATHER HOSE, rear | XB12X | |
| P0138.K | SENSOR, air intake (not illustrated - see Switches, Connectors, Sensors & Miscellaneous) | XB12X | ||
| 6 | P0139.K | GROMMET | XB12X | Feb 2017 |
| 7 | P0144.02A8 | SEAL, air cleaner | XB12X | |
| 8 | P0213.02A8 | FILTER ELEMENT | XB12X | |
| 9 | P0215.3AA | COVER, air cleaner | XB12X | Feb 2017 |
| 10 | P1700.1AK | BASEPLATE ASSEMBLY, w/ P0144.02A8 | XB12X | |
| 11 | S0137.1AA | CABLE, interactive exhaust | XB12X | |
| 12 | S0138.2AA | ACTUATOR, interactive exhaust | XB12X | |
| 13 | Y0206.1AAA | HARNESS, interactive exhaust | XB12X | Feb 2017 |
| 14 | P1701.3AC | BASEPLATE ASSEMBLY, w/ P0144.02A8 (Japan) | XB12X |
