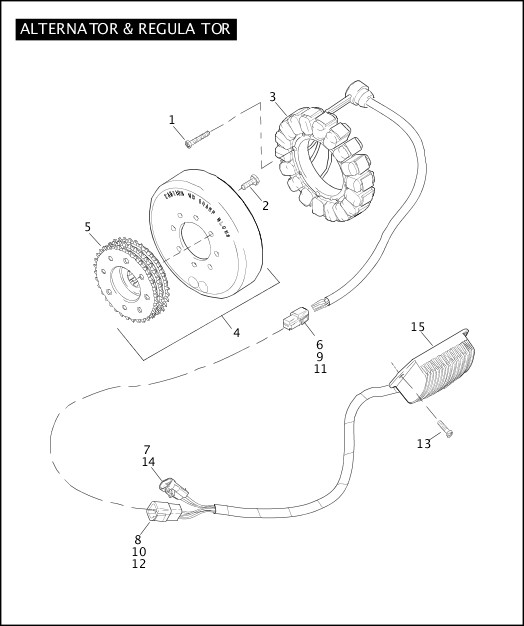

| 1 |
3029
|
SCREW (4) |
XB12X |
|
| 2 |
4751
|
BOLT (8) |
XB12X |
|
| 3 |
29971-02YA
|
STATOR ASSEMBLY, 3-phase, 38 AMP |
XB12X |
|
| 4 |
32494-04A
|
ROTOR SPROCKET ASSEMBLY |
XB12X |
|
| 5 |
40290-04
|
SPROCKET, triple row, 38T |
XB12X |
|
| 6 |
72195-94
|
PLUG |
XB12X |
|
| 7 |
72238-94
|
LOCK, secondary |
XB12X |
|
| 8 |
72604-01BK
|
HOUSING PIN, 4-way, black |
XB12X |
|
| 9 |
72614-01BK
|
SOCKET, 4 way (black) |
XB12X |
|
| 10 |
72644-01
|
LOCK, secondary, 4-way |
XB12X |
|
| 11 |
72654-01
|
LOCK, secondary, 4 way socket |
XB12X |
|
| 12 |
72690-01
|
PIN TERMINAL (3) |
XB12X |
|
| 13 |
AN1004.2CZ
|
SCREW (3) |
XB12X |
|
|
C0089.4A8
|
INSERT, voltage regulator (not illustrated) |
XB12X |
|
|
Y0135.02A8
|
TERMINAL, voltage regulator/terminal & seal set (not illustrated) |
XB12X |
|
| 14 |
Y0145.02A8
|
TERMINAL & SEAL SET |
XB12X |
|
| 15 |
Y0302.02A8
|
VOLTAGE REGULATOR |
XB12X |
|
