XB12X Ulysses Parts Catalog
2007

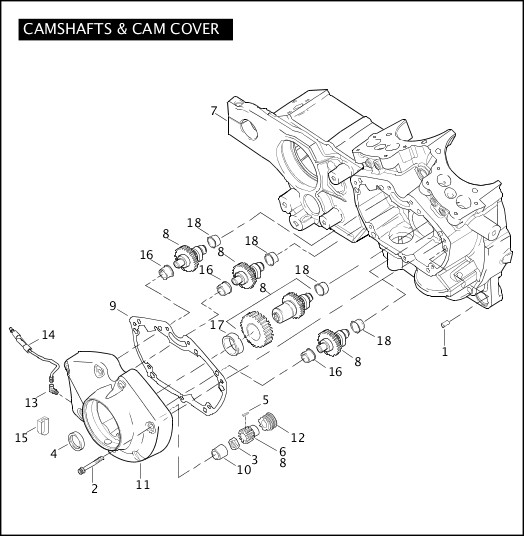

CAMSHAFTS & CAM COVER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 215 | DOWEL PIN (2) | XB12X | |
| 2 | 4824 | SCREW, sems (black) (7) | XB12X | Oct 2015 |
| 3 | 7916A | JAM NUT | XB12X | |
| 4 | 11124 | SEAL, oil | XB12X | |
| 5 | 11317 | KEY, square | XB12X | |
| 6 | 24047-00 | PINION GEAR | XB12X | |
| 7 | 24439-06 | CRANKCASE SET, w/ bearings & bushings | XB12X | |
| 8 | 25188-02 | E CAM GEAR SET, w/ pinion gear | XB12X | |
| 9 | 25353-00YB | GASKET, camshaft cover | XB12X | |
| 10 | 25593-74 | BUSHING, pinion gearshaft | XB12X | |
| 11 | 25778-04A | GEAR COVER ASSEMBLY, w/ oil seal & fitting (painted magnesium tone) | XB12X | |
| 12 | 26391-06 | DRIVE GEAR, oil pump | XB12X | |
| 13 | 26365-02A | FITTING, oil vent hose | XB12X | |
| 14 | HS0024.4A8 | OIL LINE, vent | XB12X | |
| 15 | Q0009.3AA | COVER, oil line | XB12X | Nov 2014 |
| 16 | 25586-37 | BUSHING (3) | XB12X | |
| 17 | 25588-91 | BUSHING | XB12X | |
| 18 | 25598-91 | BUSHING, cam gearshaft (4) | XB12X |
