XB12X Ulysses Parts Catalog
2007

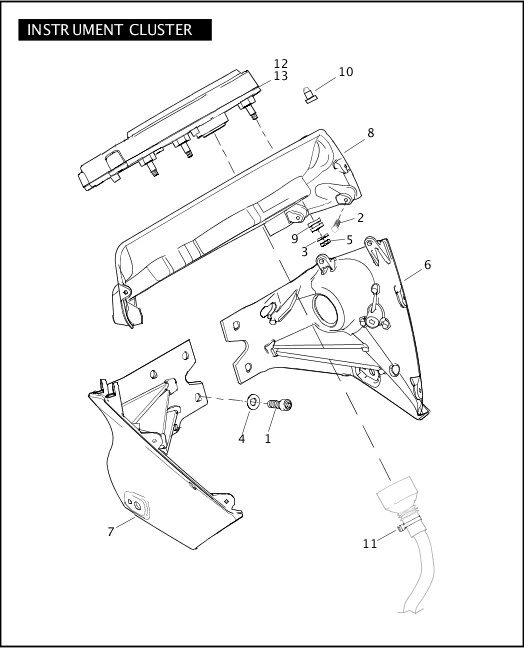

INSTRUMENT CLUSTER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0507.2CZB | SCREW | XB12X | |
| 2 | AN1005.1FSS | SCREW (4) | XB12X | |
| 3 | B0510.1Z | WASHER (3) | XB12X | Nov 2014 |
| 4 | BA0511.2Z | WASHER (1) | XB12X | |
| 5 | D0500.1CZ | JAM NUT (3) | XB12X | Nov 2014 |
| 6 | L0940.1AKYBP | FRONT MODULE, left (graphite grey) | XB12X | Feb 2017 |
| 7 | L0941.1AKYBP | FRONT MODULE, right (graphite grey) | XB12X | Feb 2017 |
| 8 | L0942.1AKYBP | FAIRING SUPPORT, center (graphite grey) | XB12X | Feb 2017 |
| 9 | M0649.01A3 | GROMMET (3) | XB12X | |
| 10 | Y0162.02A8 | BULB, instrument cluster, backlight | XB12X | |
| Y0163.02A8 | BULB, instrument cluster, warning lights | XB12X | ||
| 11 | Y0303.2B | CABLE STRAP | XB12X | |
| 12 | Y0500.1AK | INSTRUMENT CLUSTER, mph (DOMESTIC, ENGLAND) | XB12X | |
| 13 | Y0501.1AK | INSTRUMENT CLUSTER, kph (AUSTRALIA, CANADA, EUROPE, JAPAN) | XB12X |
