2000-2001 S3/S3T Thunderbolt Parts Catalog
2001

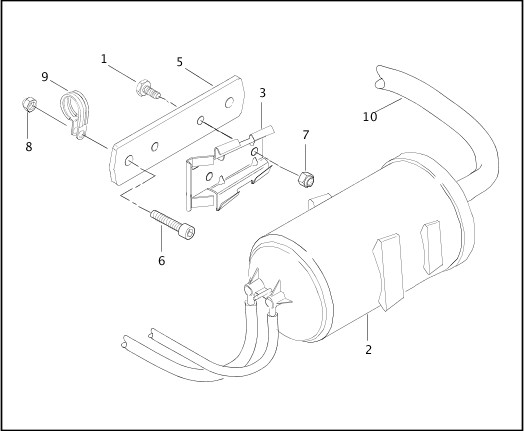

CALIFORNIA EVAPORATIVE EMISSIONS COMPONENTS
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | AA0403.1CAZ | SCREW, canister clip mounting (2) | ALL | |
| 2 | 27042-84A | CANISTER ASSEMBLY | ALL | |
| 3 | 27047-84B | BRACKET, canister mounting | ALL | |
| 4 | 27292-95 | ELBOW, 90 degree (not illustrated) | ALL | |
| 5 | 29426-97Y | PLATE, carbon canister mount | ALL | |
| 6 | AA0406.2CBZ | SCREW, canister plate mounting (2) | ALL | |
| 7 | DA0400.3CZ | LOCKNUT, canister clip mounting (2) | ALL | |
| 8 | DA0400.10CZ | LOCKNUT, canister plate mounting (2) | ALL | |
| 9 | C0529.8 | CLAMP, canister mounting (2) | ALL | Jul 2012 |
| 10 | P0502.8 | HOSE, canister to air cleaner | ALL | Sep 2009 |
