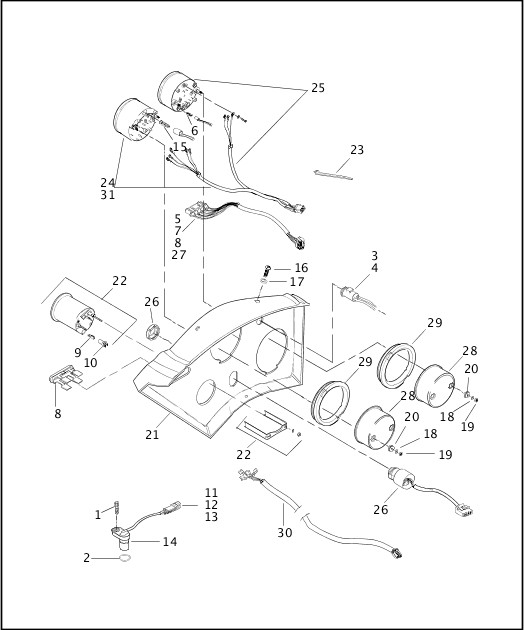

Index No.	Part No.	Description	Models	Obselete
1	3594	SCREW	ALL
2	11289A	O-RING	ALL
3	67446-99Y	ODOMETER RESET KNOB KIT	ALL
4	68839-99Y	COVER, odometer reset knob	ALL
5	68024-94	BULB, indicator lamps (5)	ALL
6	68073-99Y	BULB, tachometer (3)	ALL
7	68382-96	LENS, indicator lamp	ALL
8	68792-96	HOUSING, indicator lamp	ALL
9	68869-98Y	BULB, clock	ALL
10	69595-97Y	BULB SOCKET, clock	ALL
11	72143-94	SECONDARY LOCK, 3-place connector	ALL
12	72163-94GY	CONNECTOR, 3-place	ALL
13	72190-94	TERMINAL, pin (3)	ALL
14	74402-95B	SENSOR, vehicle speed	ALL
15	75048-96	BULB, speedometer	ALL
16	AA0404.3CBBL	SCREW (3)	ALL	Feb 2010
17	BA0409.6BL	WASHER, plastic (3)	ALL
18	B0613.1Z	WASHER (4)	ALL
19	D0500.1CZ	JAM NUT (4)	ALL	Nov 2014
20	M0649.01A3	GROMMET (4)	ALL
21	M2660.M	DASH PANEL KIT	ALL	Nov 2014
22	Y0159.H	CLOCK (black bezel)	ALL	Mar 2012
23	Y0305.8B	CABLE STRAP (2)	ALL
24	Y0500.KC	SPEEDOMETER, mph (black bezel)	ALL	Nov 2014
25	Y0501.K	TACHOMETER (black bezel)	ALL
26	Y0610.B	IGNITION SWITCH & LOCK SET, w/ keys (fork, ignition & seat)	ALL	Nov 2014
	Y0610.E	IGNITION SWITCH & LOCK SET, w/ keys (fork, ignition, seat & saddlebags)	ALL
27	Y0625.9A	INDICATOR LIGHT ASSEMBLY, complete	ALL	Feb 2010
28	Y0630.K	CUP, dash instrument can (black) (2)	ALL	May 2010
29	Y0633.K	CUSHION, gauge mount (rubber) (2)	ALL
30	YH031.H	WIRING HARNESS, clock	ALL	Mar 2012
31	Y0522.KKMB	SPEEDOMETER, kph (black bezel) (Canada, Japan, New Zealand)	ALL	Feb 2010
