2000-2001 S3/S3T Thunderbolt Parts Catalog
2001

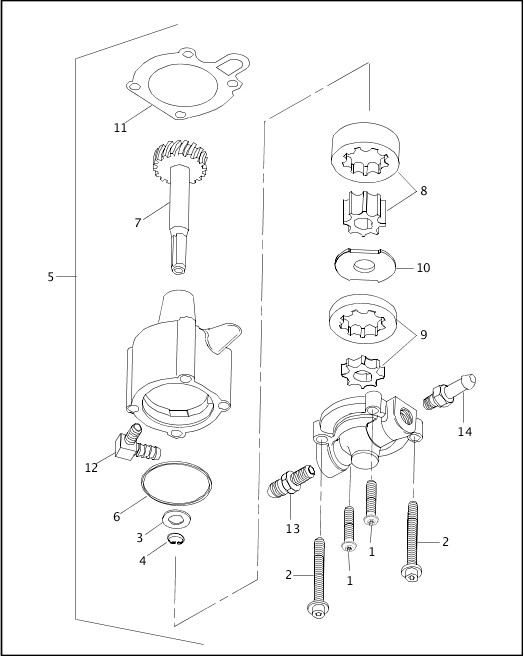

OIL PUMP
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | 4132 | SCREW (2) | ALL | |
| 2 | 4765 | SCREW (2) | ALL | |
| 3 | 6157 | WASHER | ALL | |
| 4 | 11002 | RETAINING RING | ALL | |
| 5 | 26204-91A | OIL PUMP ASSEMBLY KIT, complete | ALL | |
| 6 | 26434-91 | O-RING | ALL | |
| 7 | 26488-98 | GEAR SHAFT (use 26204-91A) | ALL | |
| 8 | 26491-98 | GEROTOR SET, return (use 26204-91A) | ALL | |
| 9 | 26492-91 | GEROTOR SET, feed | ALL | |
| 10 | 26493-91 | SEPARATOR PLATE | ALL | |
| 11 | 26495-89B | GASKET, pump mounting | ALL | |
| 12 | 26496-75A | FITTING, 90 degree | ALL | |
| 13 | 62601-91A | FITTING, connector, front | ALL | |
| 14 | 63533-41A | FITTING, connector, rear | ALL |
