2000-2001 S3/S3T Thunderbolt Parts Catalog
2001

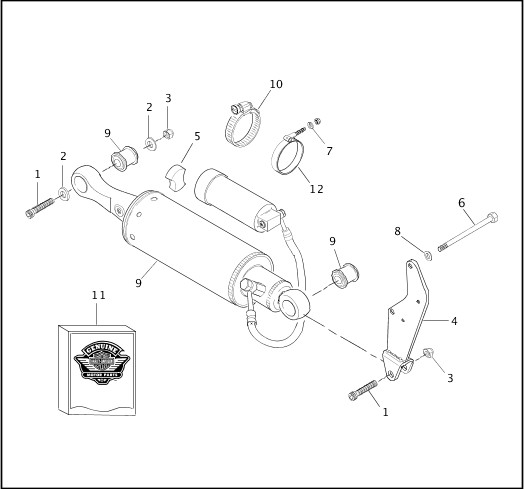

REAR SHOCK ABSORBER
| Index No. | Part No. | Description | Models | Obselete |
|---|---|---|---|---|
| 1 | A1255.2CUZB | SCREW (2) | ALL | Nov 2014 |
| 2 | 5903Y | WASHER (2) | ALL | Feb 2010 |
| 3 | D1200.2CZ | LOCKNUT (2) | ALL | |
| 4 | K0407.8H | BRACKET, rear shock absorber mounting | S3 2000, S3T 2000 | Mar 2012 |
| K0407.01A1 | BRACKET, rear shock absorber mounting | S3 2001, S3T 2001 | ||
| 5 | K0412.8 | MOUNT, rear shock absorber reservoir | ALL | |
| 6 | AA0646.1CZ | BOLT (2) | ALL | |
| 7 | BA0409.1Z | WASHER | ALL | |
| 8 | BA0613.2Z | WASHER (2) | ALL | |
| 9 | K0431.M | SHOCK ABSORBER ASSEMBLY, rear | S3 2001, S3T 2001 | |
| 10 | K0411.8B | CLAMP | ALL | |
| 11 | K1400.C | SHOCK REPLACEMENT KIT | S3 2000, S3T 2000 | Mar 2007 |
| 12 | S0120.K | CLAMP | ALL |
