2000-2001 S3/S3T Thunderbolt Parts Catalog

2001
  1. Home
  2. Part
  3. Catalogs

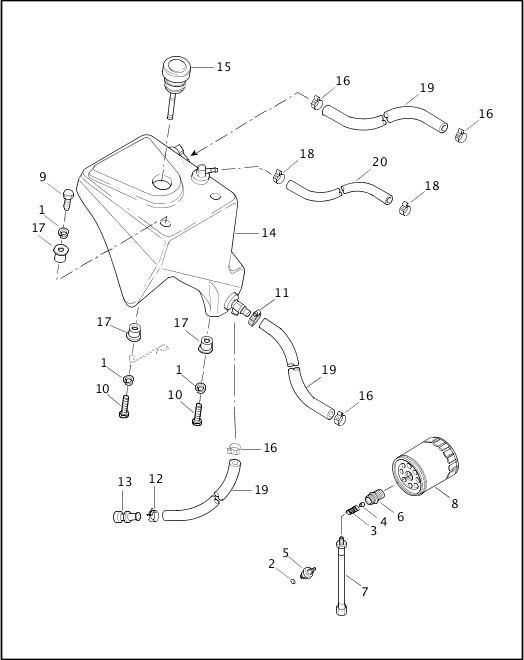

OIL TANK & FILTER

Part Image Missing
Index No. Part No. Description Models Obselete
1 6161Y LOCKWASHER (4) ALL
Feb 2010
2 7629 NUT ALL
3 26436-90A SPRING ALL
4 26437-86B BALL ALL
5 26554-77B SWITCH, oil pressure indicator ALL
6 33117-91A ADAPTOR, oil filter ALL
7 62631-91 HOSE, oil pump to filter ALL
8 63805-80A OIL FILTER ALL
9 AA0507.1CZ BOLT, upper tank mounting (2) ALL
10 AA0508.1CZ BOLT, lower tank mounting (2) ALL
11 C0540.9 CLAMP, worm gear type, 3/8 inch ALL
12 C0900.9 CLAMP, spring type, 3/8 inch ALL
13 Q0103.9A PLUG, drain ALL
14 Q0110.B OIL TANK ASSEMBLY ALL
15 Q0111.9Q FILLER CAP, w/ dipstick ALL
Jul 2012
16 Q0112.C CLAMP, hose, 3/8 inch (4) ALL
17 Q0117.2 WELL-NUT (4) ALL
18 Q0123.0 CLAMP, hose, 1/4 inch (2) ALL
19 63500-68 HOSE, 3/8 inch I.D. x 5/8 inch O.D. (rubber) (25 feet) ALL
20 63501-68B HOSE, 1/4 inch I.D. x 1/2 inch O.D. (rubber) (25 feet) ALL
>
